CLS Platform-Wide · Case study

Designing a Shared Laboratory Experience

Clinisys wanted a single, discipline-agnostic Laboratory Information System instead of separate builds per specialty: identify what's shared across laboratory disciplines, design one experience for it, then layer in what's genuinely discipline-specific. I built the framework, and the research behind it, that made that judgment possible across twelve laboratory domains.

Laboratory discipline taxonomy mapping for healthcare domains

01 · Executive summary

One platform had to serve laboratory disciplines that do not look alike on the surface.

Clinisys was consolidating its laboratory products onto CLS, bringing disciplines as different as anatomic pathology, clinical pathology, genomics, reproductive medicine, environmental testing, pharmaceutical QC, and forensic science into a single platform. The challenge was determining what could genuinely be shared across those disciplines, and what could not.

I conducted weekly SME interviews and workshops over three months and developed a four-lens framework for comparing the work: who does it, what they work with, how it happens, and what the system must support.

The analysis mapped 16 role families, 12 laboratory domains, 15 workflow models, and 29 application flows, providing evidence for where the CLS experience could be shared and where it needed to branch.

Team members knew their own disciplines deeply but had little visibility into the others, and capabilities assumed to be discipline-specific exposed gaps that caused rework as CLS expanded into healthcare.

The framework was used for Clinical Microbiology and Clinical Pathology, and finishing its shared workflows first let Microbiology move forward.

Research question

What can genuinely be shared across CLS's twelve laboratory domains, and where must the experience diverge?

02 · Approach

Systems research: understanding the domains well enough to know what could safely be generalized.

Method

I met weekly for three months with a rotating group of three to seven SMEs across Anatomic Pathology, Clinical Pathology, Microbiology, and Scientific.

The framework emerged from early SME conversations, then became the standing interview guide for subsequent workshops: who is doing the work, what are they working with, how does the work happen, and what must the system support?

03 · Context

The apparent differences were real, but so was the structure underneath them.

Underneath the domain-specific vocabulary, both move material through receipt, processing, testing, interpretation, and reporting, with results that must remain traceable to their source. The challenge was proving that structural similarity existed precisely enough to act on it before making application-design decisions.

Challenges

No existing framework for comparing disciplines with different vocabulary, regulation, and workflow shape
Twelve domains, sixteen role families, and years of discipline-specific knowledge to reconcile
A premature shared decision could force genomics into a workflow built for pathology, or vice versa

Constraints

One application and design system for healthcare and scientific laboratories
SME time limited to weekly sessions across many disciplines
Findings had to translate directly into product and engineering input

04 · Framework

A consistent way to compare work that shared neither vocabulary nor workflow shape.

Who

Role

Who performs the activity, what they are accountable for, and where authority changes hands.

What

Objects & entities

The source, order, sample, derivatives, results, reports, and the states connecting them.

How

Process

The steps, decisions, handoffs, exceptions, and recurring workflows around the laboratory lifecycle.

Support

System capabilities

Automation, validation, integration, permissions, notifications, configuration, and traceability.

Object lifecycle

Source→Sample→Derivative→Result→Report

Each object also moves through operational states: collected, transported, received, processing, completed, stored, and disposed.

Recurring workflows

Identification and labeling

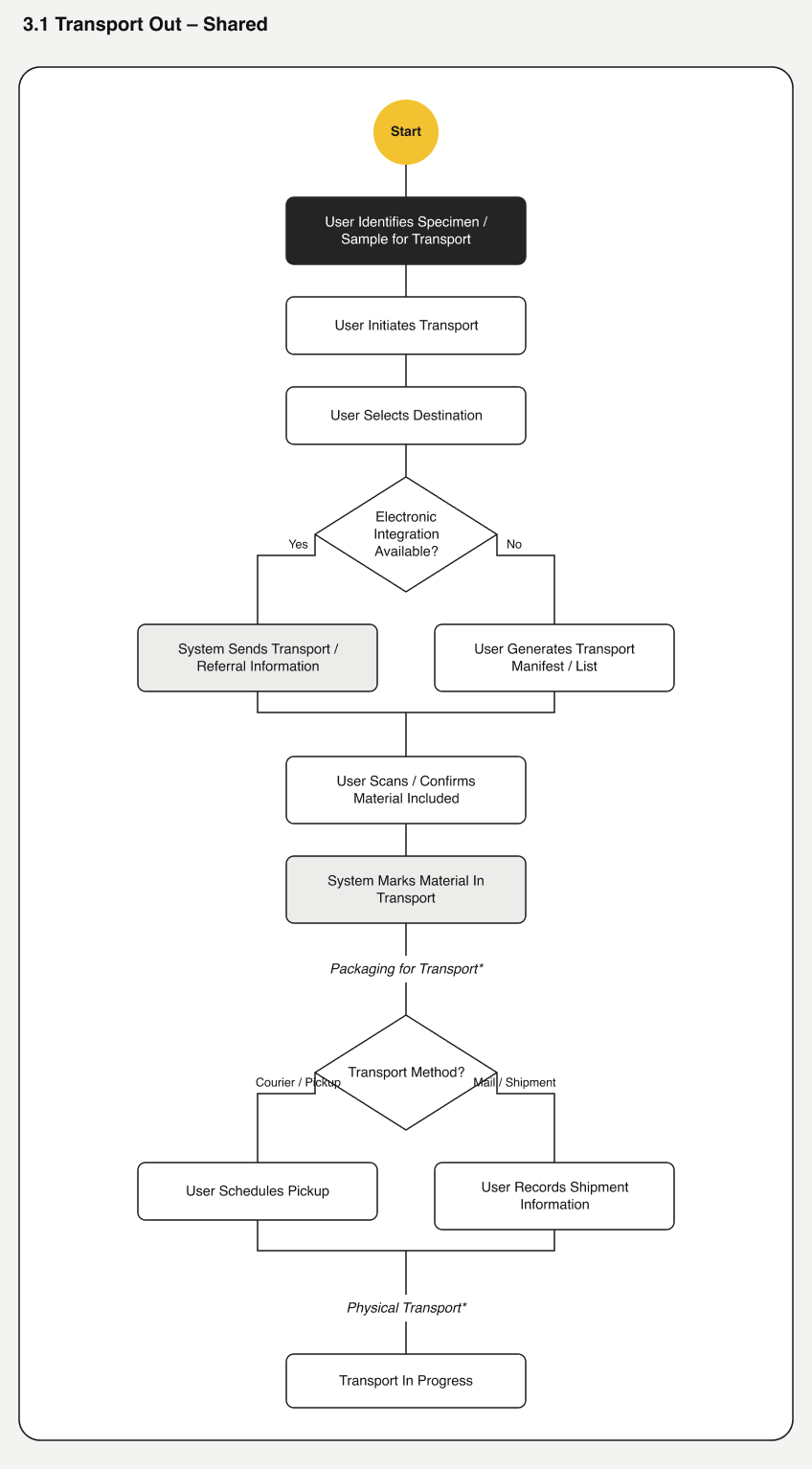

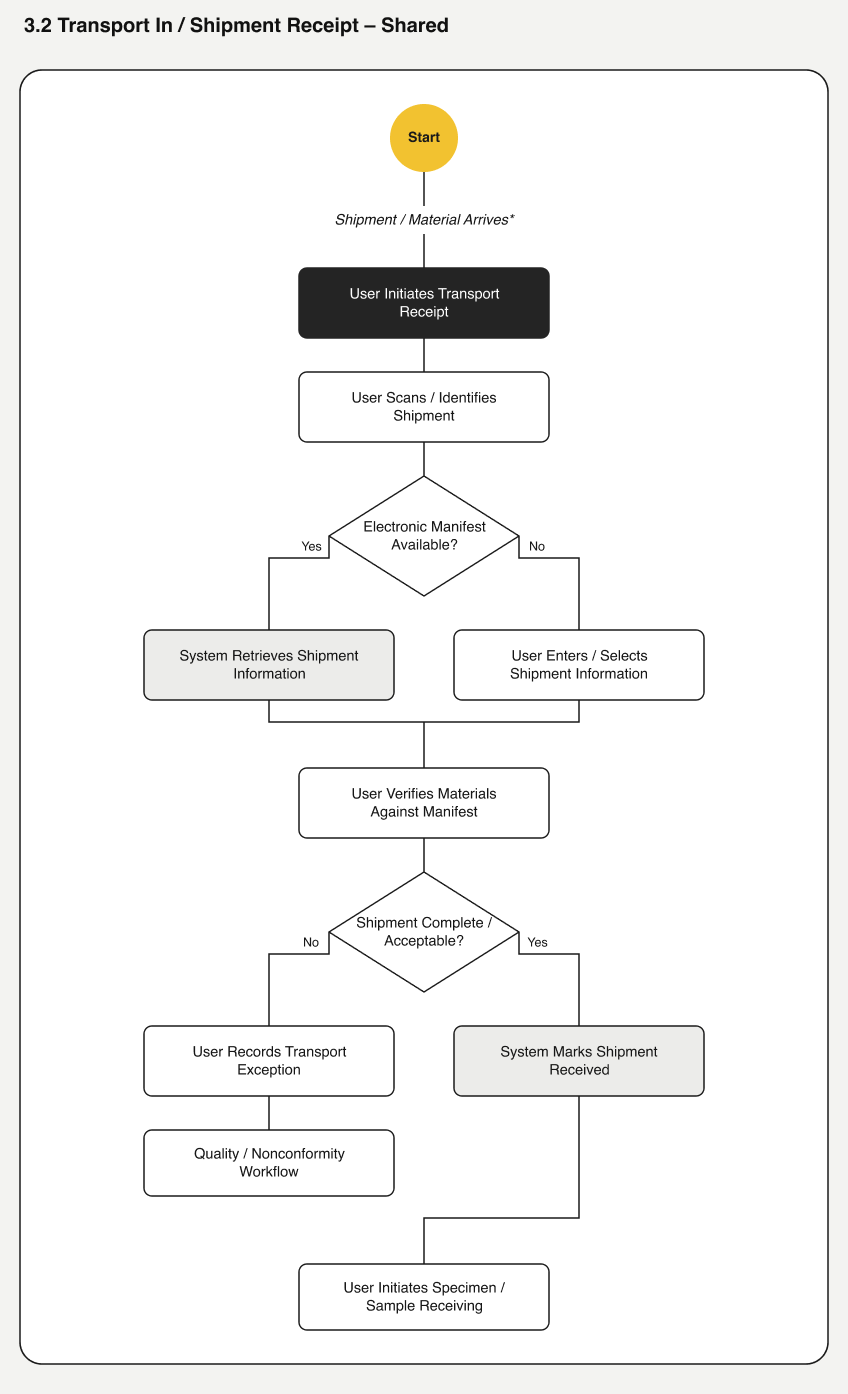

Transportation and chain of custody

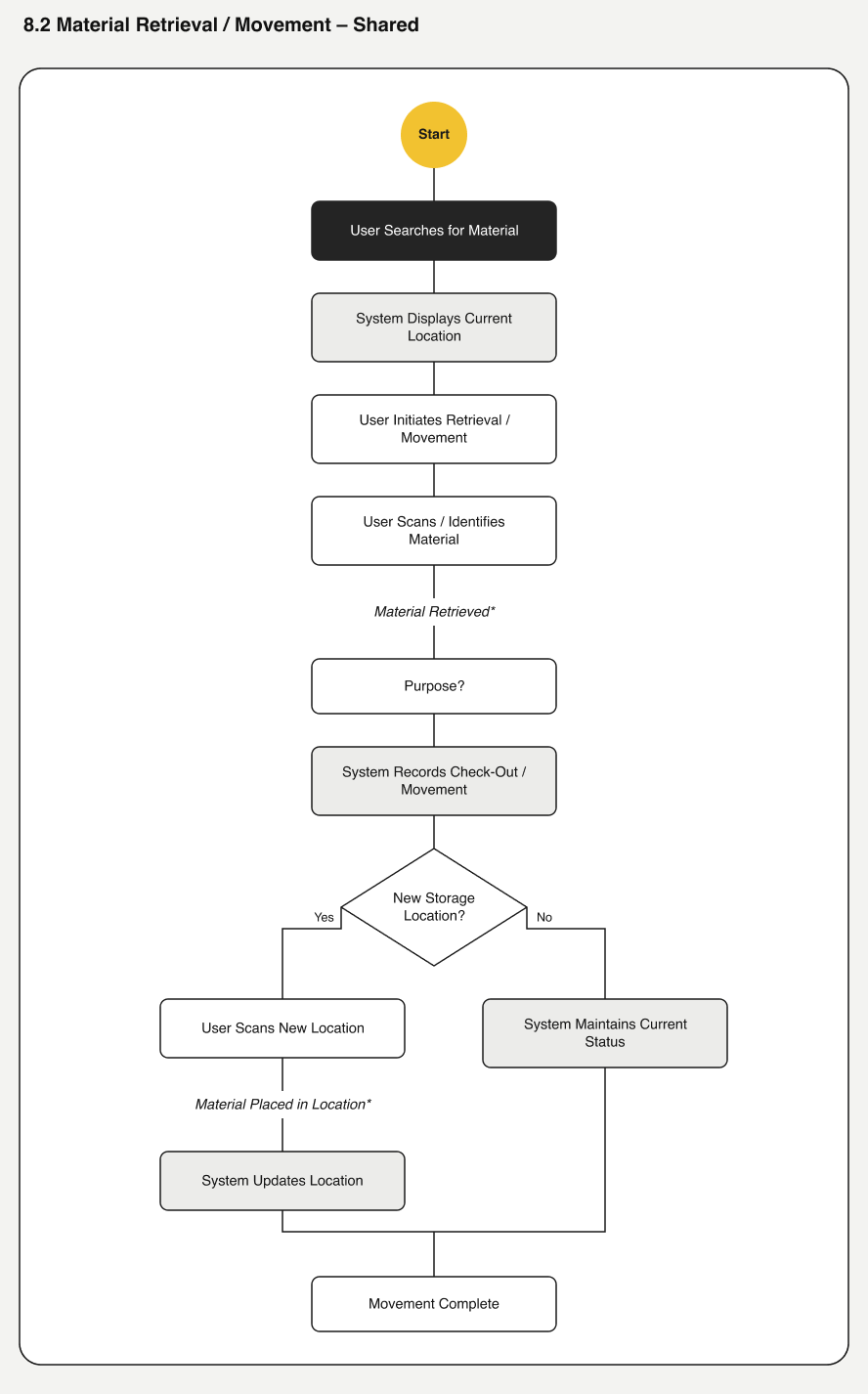

Storage and retrieval

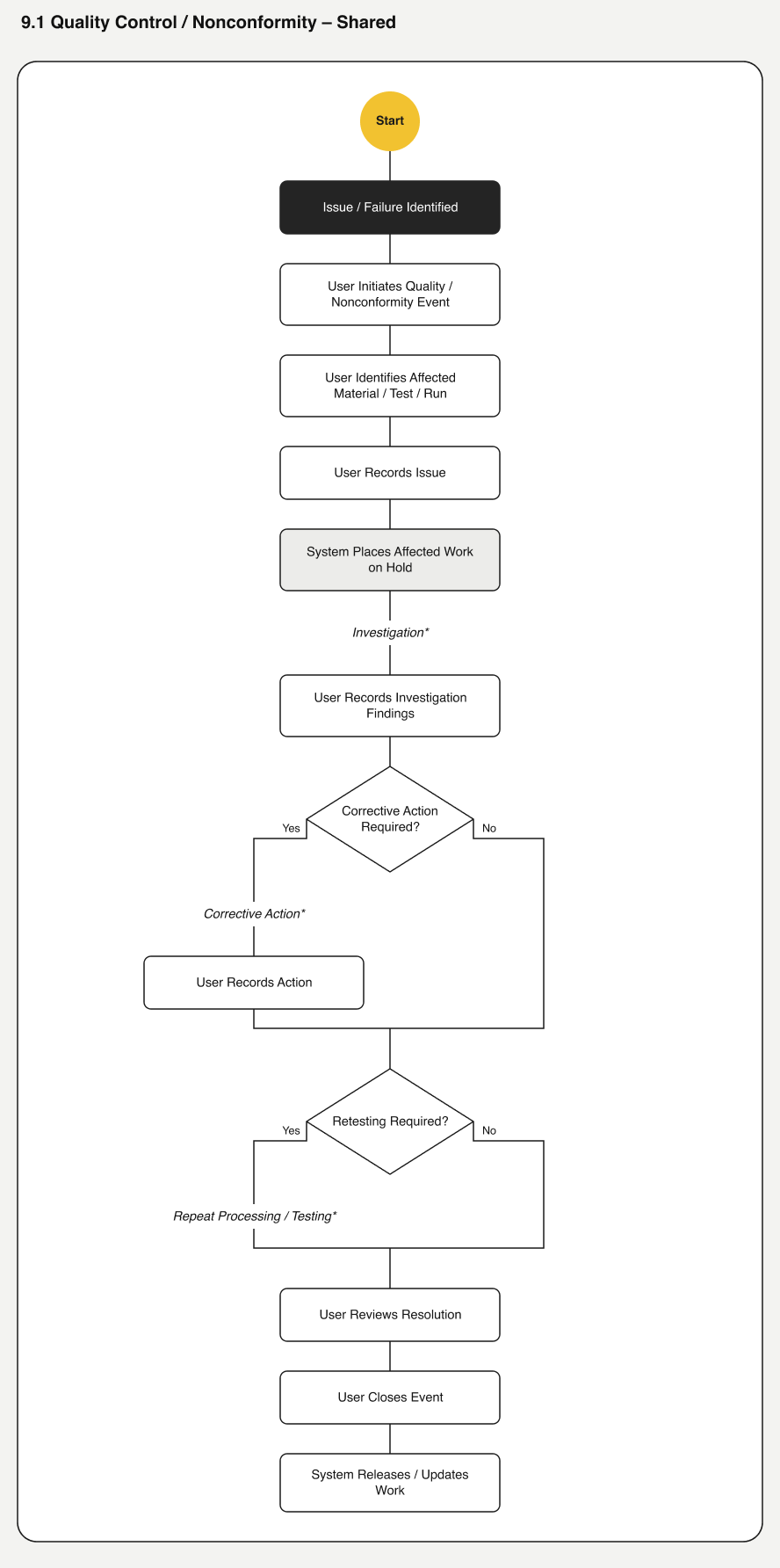

Quality control and nonconformity

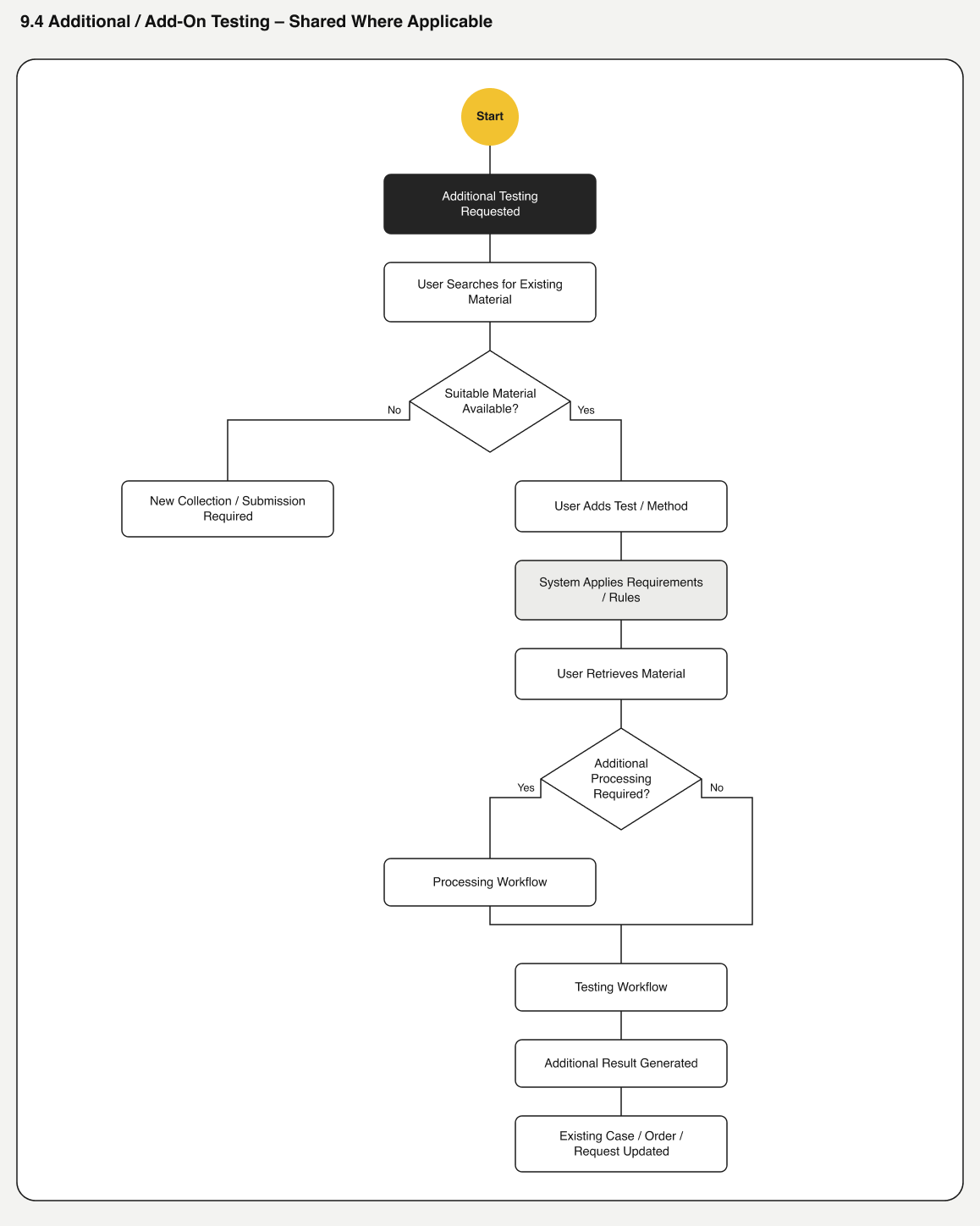

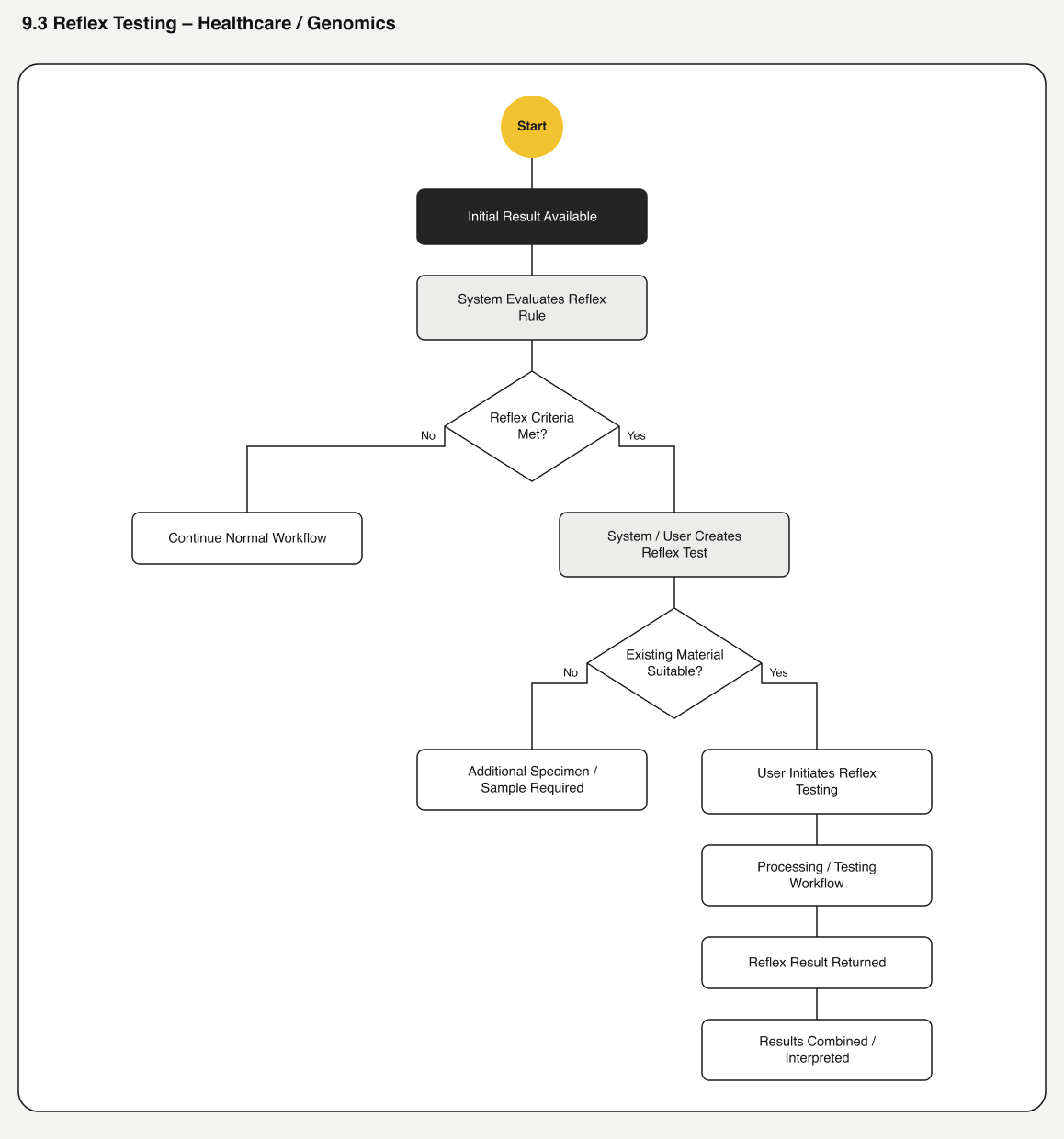

Add-on and reflex testing

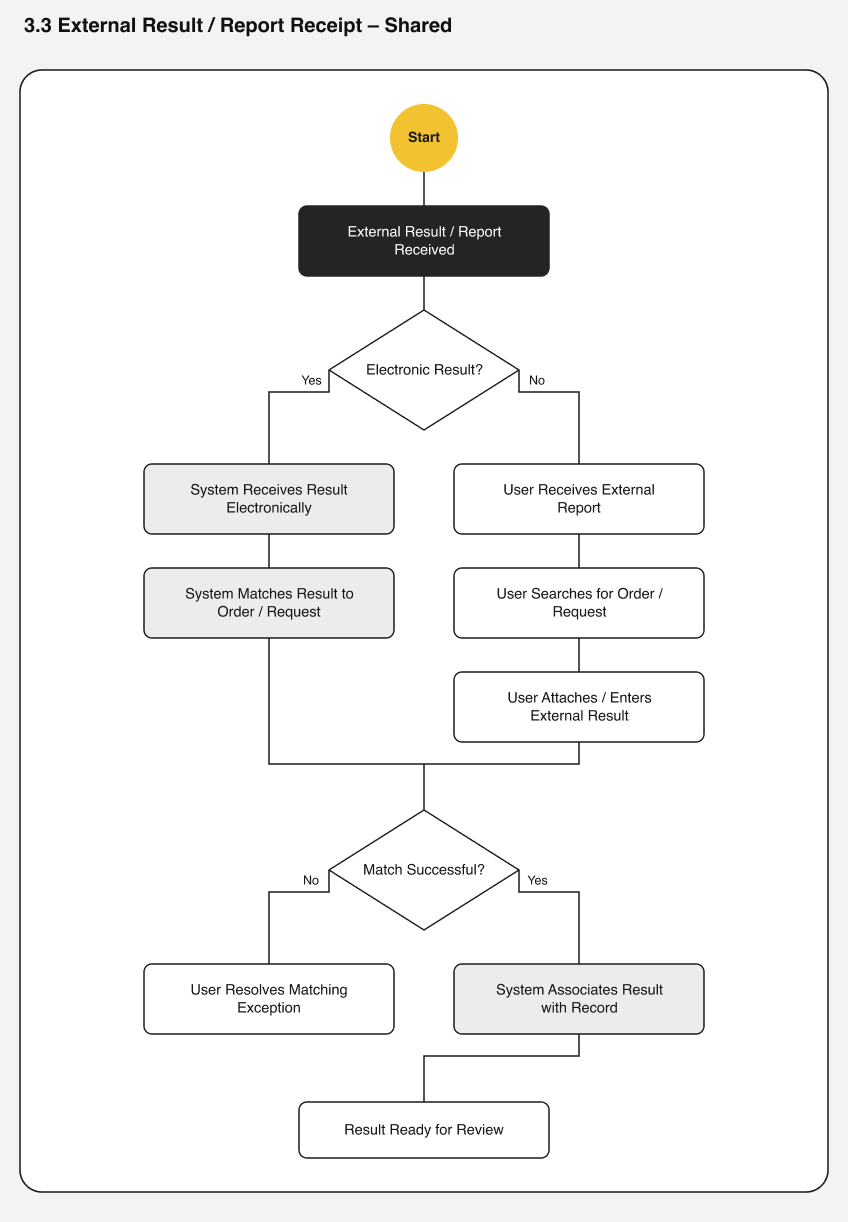

Reference laboratory workflows

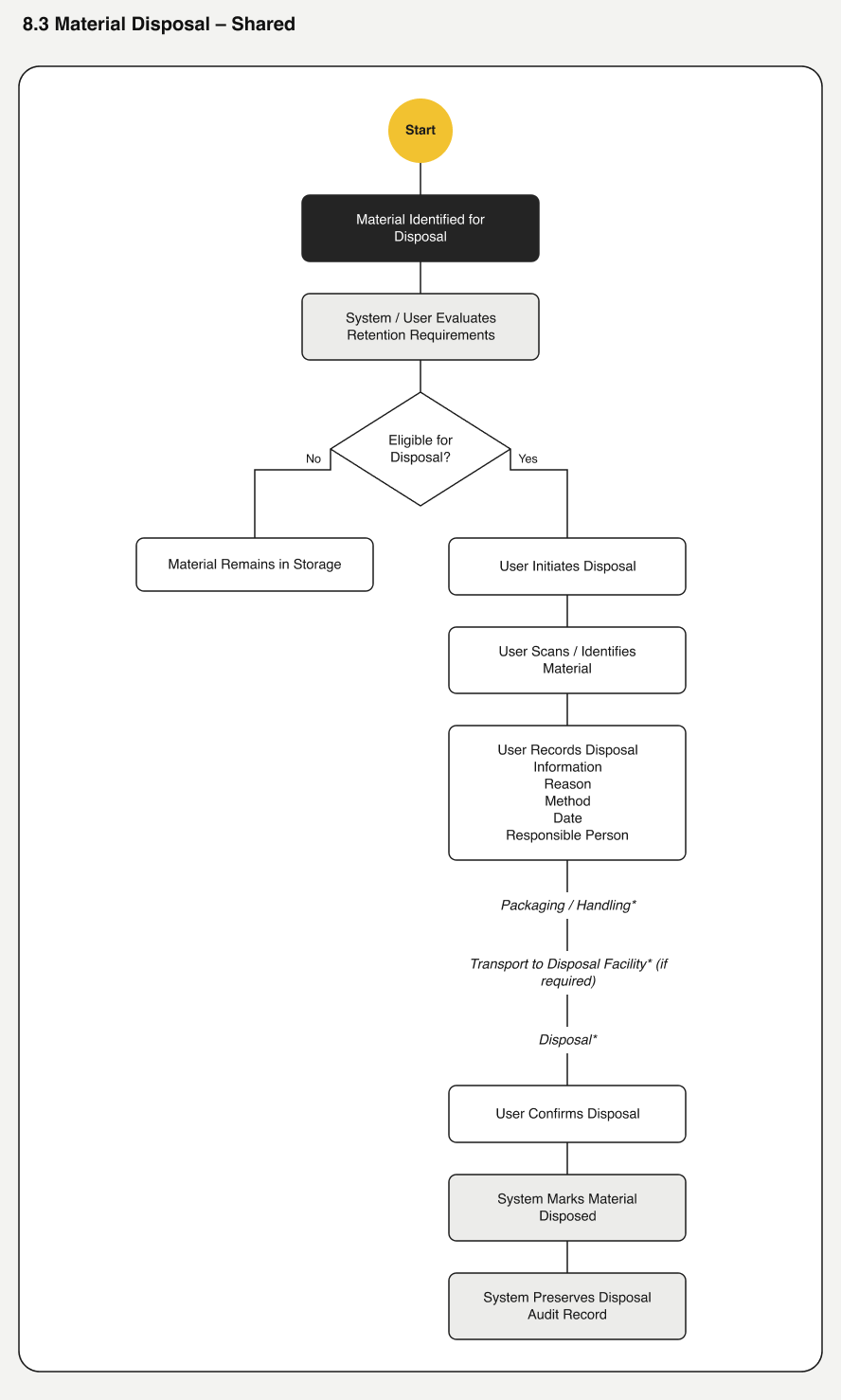

Disposal

The question asked at every step

Is this shared across disciplines or different? And what causes the difference? The science, workflow, sample type, regulation, instrumentation, organizational model, or another business rule? That answer was made flow by flow, not in the abstract.

Who

People came first, because what can be shared depends on who is using it and what they are responsible for.

Bench & specialist

Hands-on laboratory work

Laboratory Technician / Technologist
Specialist Technologist
Specimen / Accessioning Staff
Phlebotomist / Collection Staff

Clinical & scientific authority

Interpretation and expertise

Pathologist / Physician
Pathologists' Assistant
Scientist / Researcher
Clinical / Scientific Specialist
Bioinformatics / Data Scientist

Leadership & quality

Operations and governance

Laboratory Manager / Supervisor
Laboratory Director
Quality / Compliance

Systems & support

Application infrastructure

Application / LIS Administrator
Systems / Integration Specialist
IT / Informatics Leadership
Administrative / Support Staff

Why the grouping mattered

The same functional categories (bench, authority, leadership, and systems) recurred in every domain even when the titles inside them changed. That consistency made a shared permissions and role model possible.

Role familyWhat they doExamples

Laboratory Technician / TechnologistPerforms routine specimen preparation, testing, instrument operation, QC, and result documentation according to established procedures.

Lab Technician, Medical Laboratory Technician (MLT), Medical Laboratory Scientist/Technologist (MLS/MT)

Specialist TechnologistPerforms technically specialized laboratory work requiring domain-specific expertise.

Histotechnologist, Cytotechnologist, Microbiology Technologist, Molecular Technologist, Cytogenetic Technologist

Pathologist / PhysicianProvides medical oversight, interprets laboratory findings, establishes diagnoses, and authorizes clinical reports where required.

AP Pathologist, Clinical Pathologist, Hematopathologist, Molecular Pathologist

Pathologists' AssistantPerforms and documents gross examination, specimen dissection, tissue selection, and other AP activities under pathologist supervision.

Pathologists' Assistant

Scientist / ResearcherDesigns and conducts experiments, develops methods, analyzes data, and interprets scientific findings.

Scientist, Research Scientist, Molecular Biologist

Clinical / Scientific SpecialistProvides advanced interpretation and subject-matter expertise within a specialized testing domain.

Clinical Scientist, Clinical Chemist, Clinical Microbiologist, Geneticist

Bioinformatics / Data ScientistProcesses, analyzes, interprets, and manages complex laboratory datasets, particularly genomic and other high-dimensional data.

Bioinformatician, Computational Biologist, Variant Scientist

Quality / ComplianceManages laboratory quality systems, audits, nonconformances, documentation, accreditation, and regulatory compliance.

Quality Manager, QA Specialist, Compliance Officer

Laboratory Manager / SupervisorOversees day-to-day laboratory operations, staffing, workload, resources, quality, and operational performance.

Section Supervisor, Lab Manager, Operations Manager

Laboratory DirectorHolds overall scientific, clinical, regulatory, and/or operational responsibility for the laboratory.

Laboratory Director, Medical Director, Scientific Director

Specimen / Accessioning StaffReceives, identifies, registers, labels, routes, tracks, and prepares specimens for laboratory workflows.

Accessioner, Specimen Processor, Sample Coordinator

Phlebotomist / Collection StaffCollects patient specimens and ensures correct patient identification, labeling, and specimen handling.

Phlebotomist, Collection Technician

Application / LIS AdministratorConfigures and maintains laboratory applications, users, workflows, rules, dictionaries, reports, and application-level integrations.

LIS Administrator, LIMS Administrator, Application Analyst

Systems / Integration SpecialistMaintains technical infrastructure and interfaces connecting laboratory applications, instruments, middleware, EHRs, and other systems.

Systems Administrator, Interface Analyst, Integration Engineer

IT / Informatics LeadershipDefines laboratory informatics architecture, governance, security, interoperability, and technology strategy.

Laboratory Informatics Manager, IT Manager

Administrative / Support StaffSupports scheduling, documentation, billing, customer service, records, logistics, and other non-testing laboratory activities.

Administrative Assistant, Client Services, Billing Specialist

What

Twelve domains formed the comparison set across healthcare and scientific laboratories.

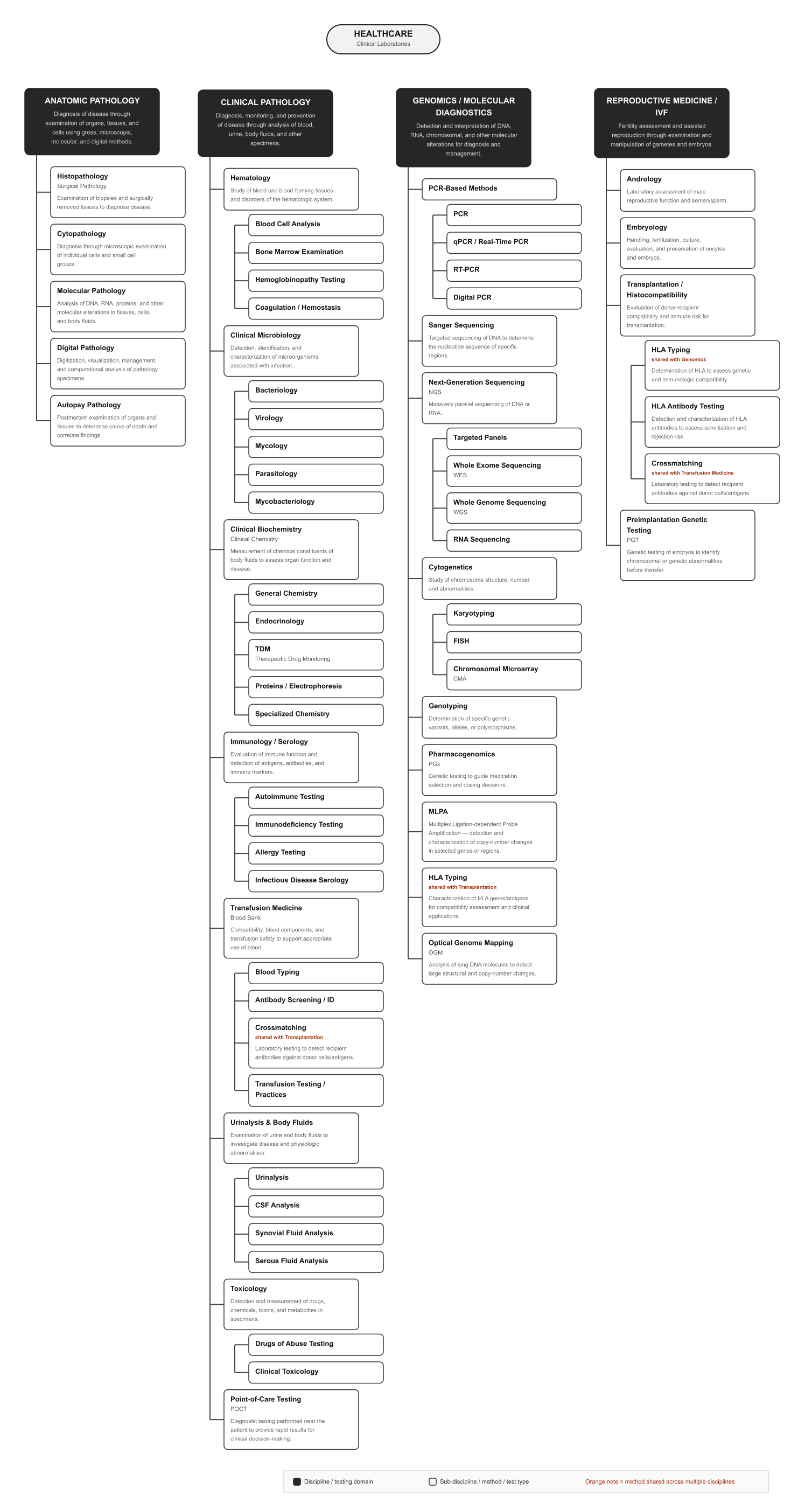

The taxonomy extended from domains into sub-disciplines and methods, down to test types such as NGS and PCR variants, so it had enough resolution to drive design decisions rather than remain abstract.

View healthcare taxonomy ↗View scientific taxonomy ↗

Healthcare4 domains

Anatomic Pathology
Clinical Pathology
Genomics / Molecular Diagnostics
Reproductive Medicine / IVF

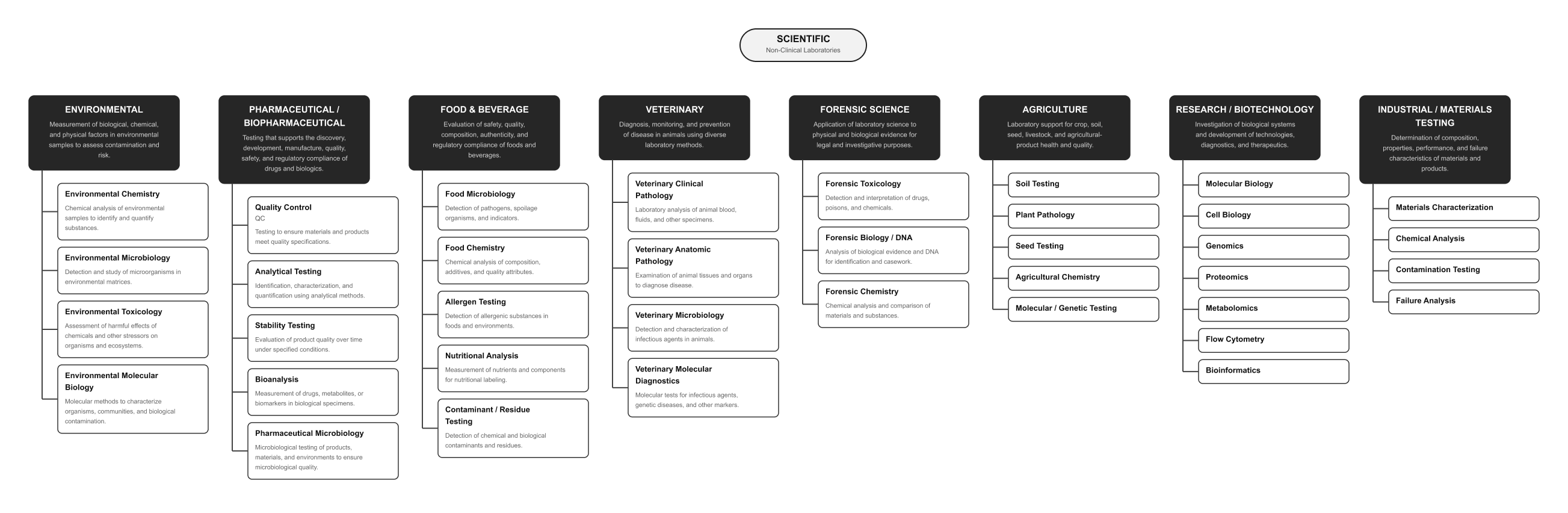

Scientific8 domains

Environmental
Pharmaceutical / Biopharmaceutical
Food & Beverage
Veterinary
Forensic Science
Agriculture
Research / Biotechnology
Industrial / Materials Testing

How

A shared lifecycle held across every discipline; the work underneath each stage did not.

Order→Collect / Receive→Prepare→Analyze→Interpret→Report

15 workflow models

The library tied each model to the specialties it served and documented its characteristic sequence. Four models (Transplant / Histocompatibility, IVF / Embryology, Pharmaceutical QC, and Research / Biotechnology) also made gaps outside the disciplines Clinisys applications currently supported visible.

Workflow modelPrimarily applies toTypical flow

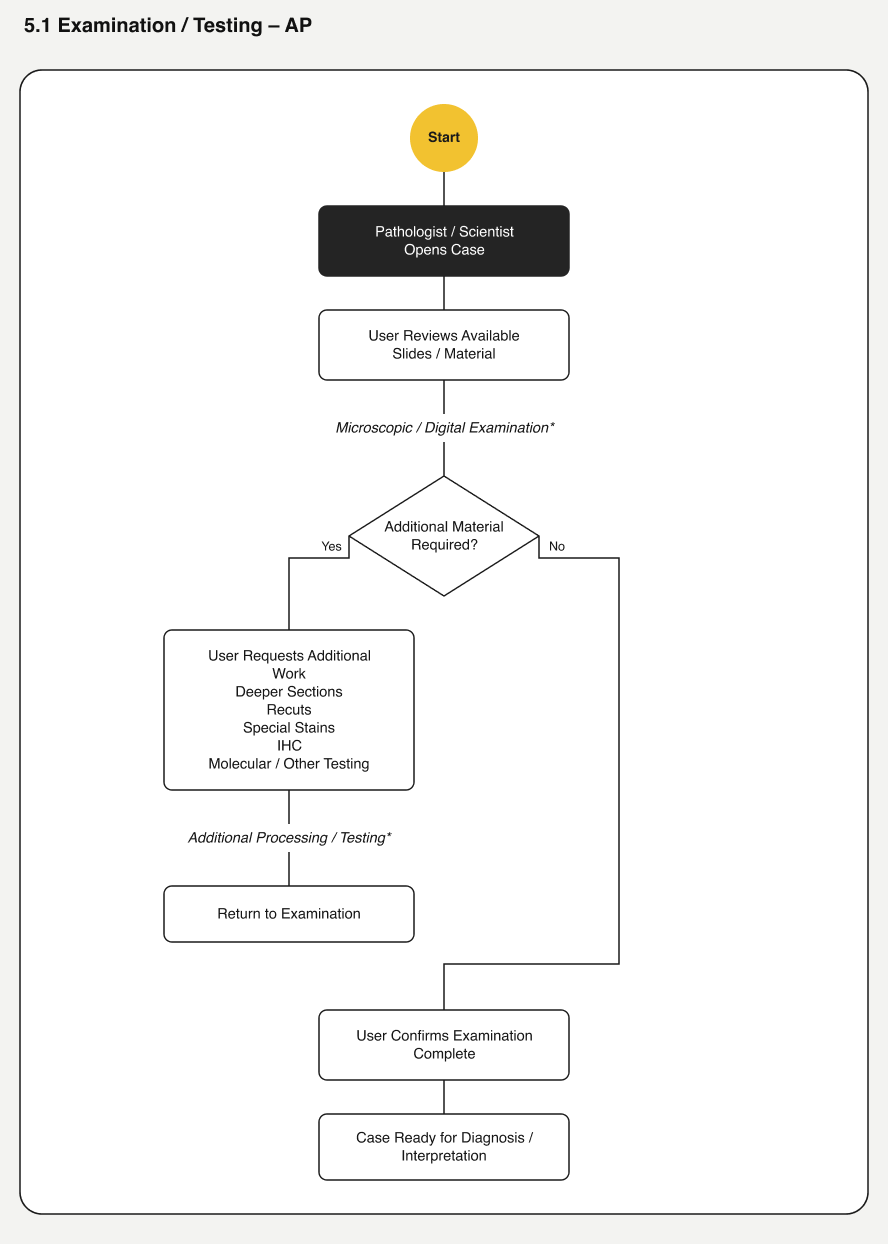

01 · Histopathology / Surgical PathologyHistopathology, Surgical Pathology

Accession→Grossing→Processing→Embedding→Microtomy→Staining→Slide Review→Diagnosis→Report→Archive

02 · CytopathologyGYN Cytology, Non-GYN Cytology, FNA

Accession→Preparation→Staining→Screening→Pathologist Review→Diagnosis→Report

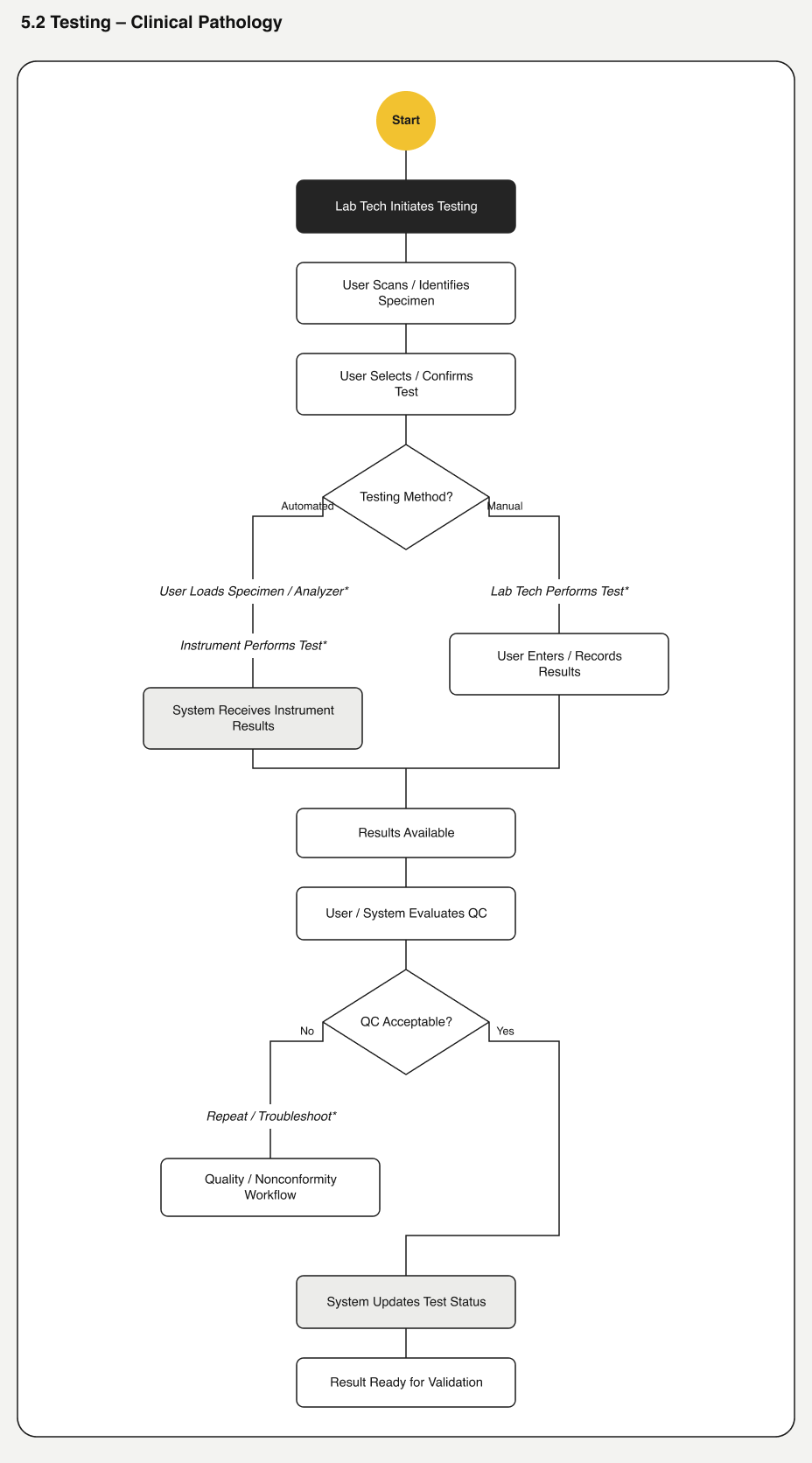

03 · Clinical LaboratoryChemistry, Hematology, Immunology, Urinalysis

Order→Collection→Preparation→Analyzer / Testing→QC→Validation→Report

04 · Clinical MicrobiologyBacteriology, Mycology, Mycobacteriology

Accession→Processing→Culture→Incubation→Identification→AST→Interpretation→Report

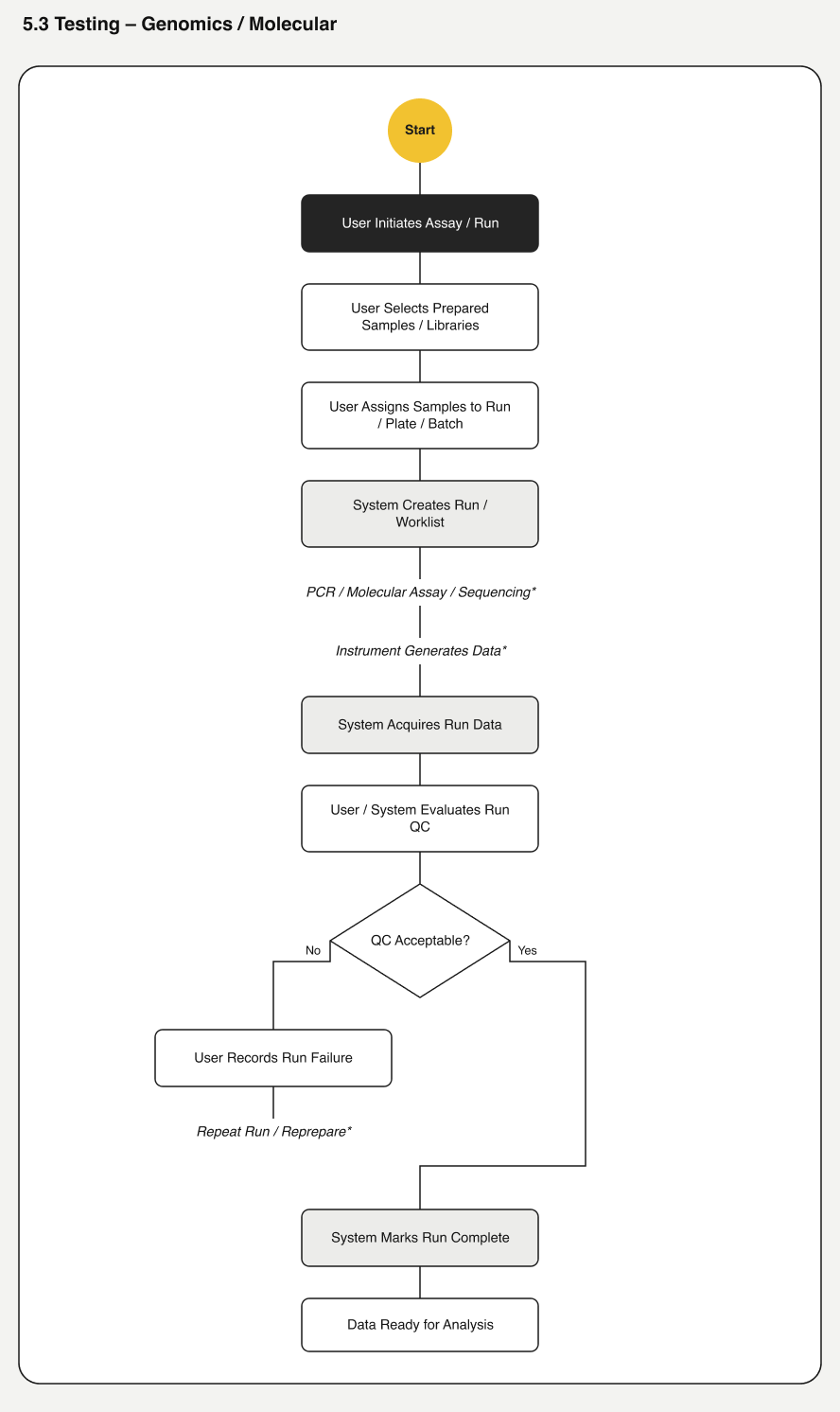

05 · Molecular Diagnostics / PCRPCR, qPCR, RT-PCR, dPCR

Accession→Preparation→Extraction→Amplification→Detection→QC→Interpretation→Report

06 · SequencingSanger, NGS, WES, WGS, RNA-seq

Accession→Extraction→Library Preparation→Sequencing→QC→Bioinformatics→Interpretation→Report

07 · CytogeneticsKaryotyping, FISH, CMA

Accession→Preparation / Culture→Assay→Imaging→Analysis→Interpretation→Report

08 · Flow CytometryClinical and research flow cytometry

Accession→Cell Preparation→Antibody Staining→Acquisition→Gating / Analysis→Interpretation→Report

09 · Transfusion MedicineBlood Bank

Order→Identification→ABO/Rh→Antibody Screen→Selection→Crossmatch→Issue→Transfusion

10 · Transplant / HistocompatibilityHLA, antibody testing, transplant crossmatch

Registration→Specimen→HLA / Antibody Testing→Crossmatch→Compatibility→Interpretation→Report

11 · ToxicologyClinical and forensic toxicology

Accession→Preparation→Screening→Confirmation→Quantitation→Interpretation→Report

12 · IVF / EmbryologyAndrology, Embryology, IVF

Patient / Cycle→Collection→Preparation→Fertilization→Culture→Assessment→Transfer / Cryopreservation

13 · Environmental / Food / IndustrialEnvironmental, Food, Agriculture, Materials

Registration→Chain of Custody→Preparation→Analysis→QC→Review→Certificate→Retention / Disposal

14 · Pharmaceutical QCPharma / Biopharma QC

Sample / Lot→Sampling→Preparation→Testing→QC→Review→Approval / Release→Stability

15 · Research / BiotechnologyResearch laboratories

Study Setup→Registration→Preparation→Procedure→Acquisition→Analysis→Review→Storage

Four-domain comparison

The same nineteen stages ran through each representative discipline. What changed was the vocabulary, the artifacts, and where the emphasis sat.

StageAnatomic PathologyClinical PathologyGenomicsScientific

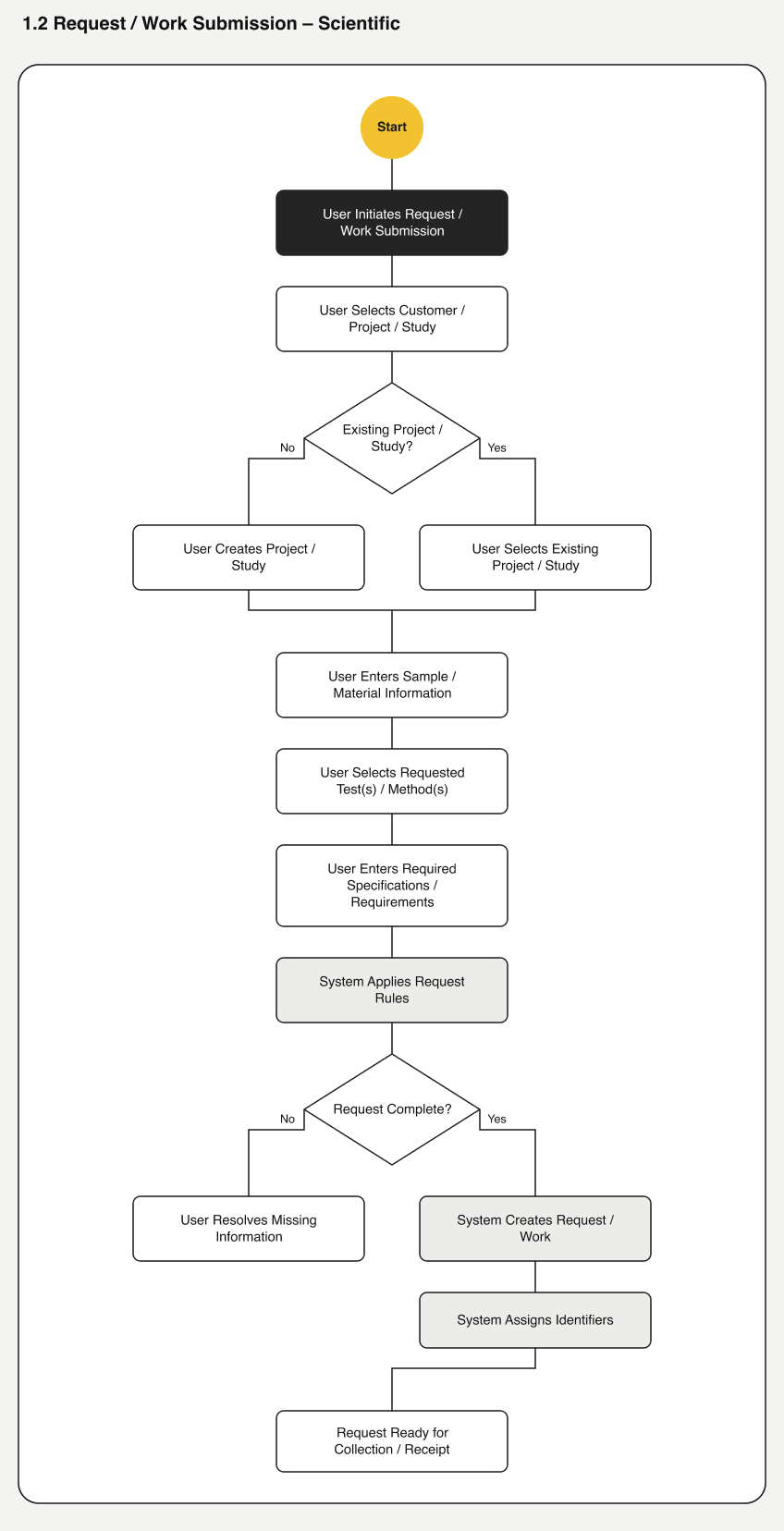

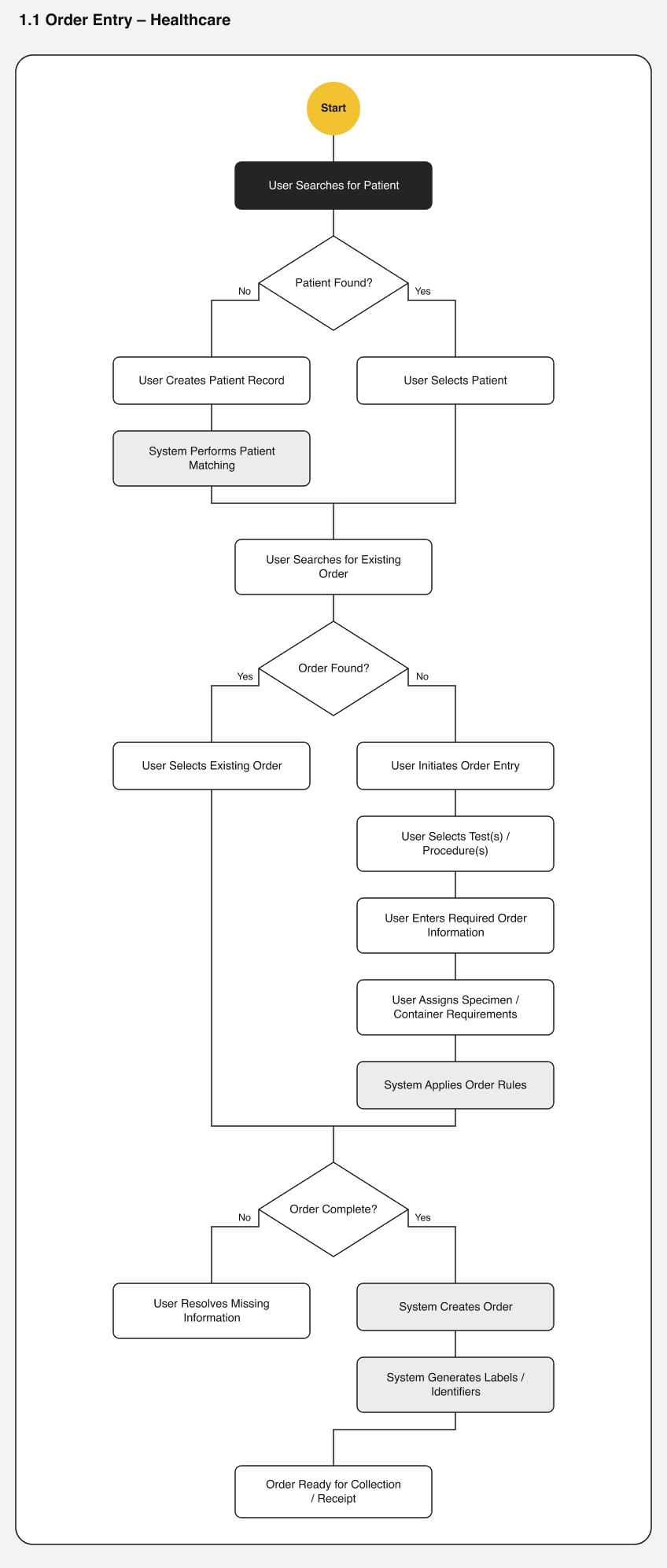

Request / Order

Patient case or pathology procedure

Patient test order

Test or assay request; clinical or research context

Customer, project, study, sample, batch, or method

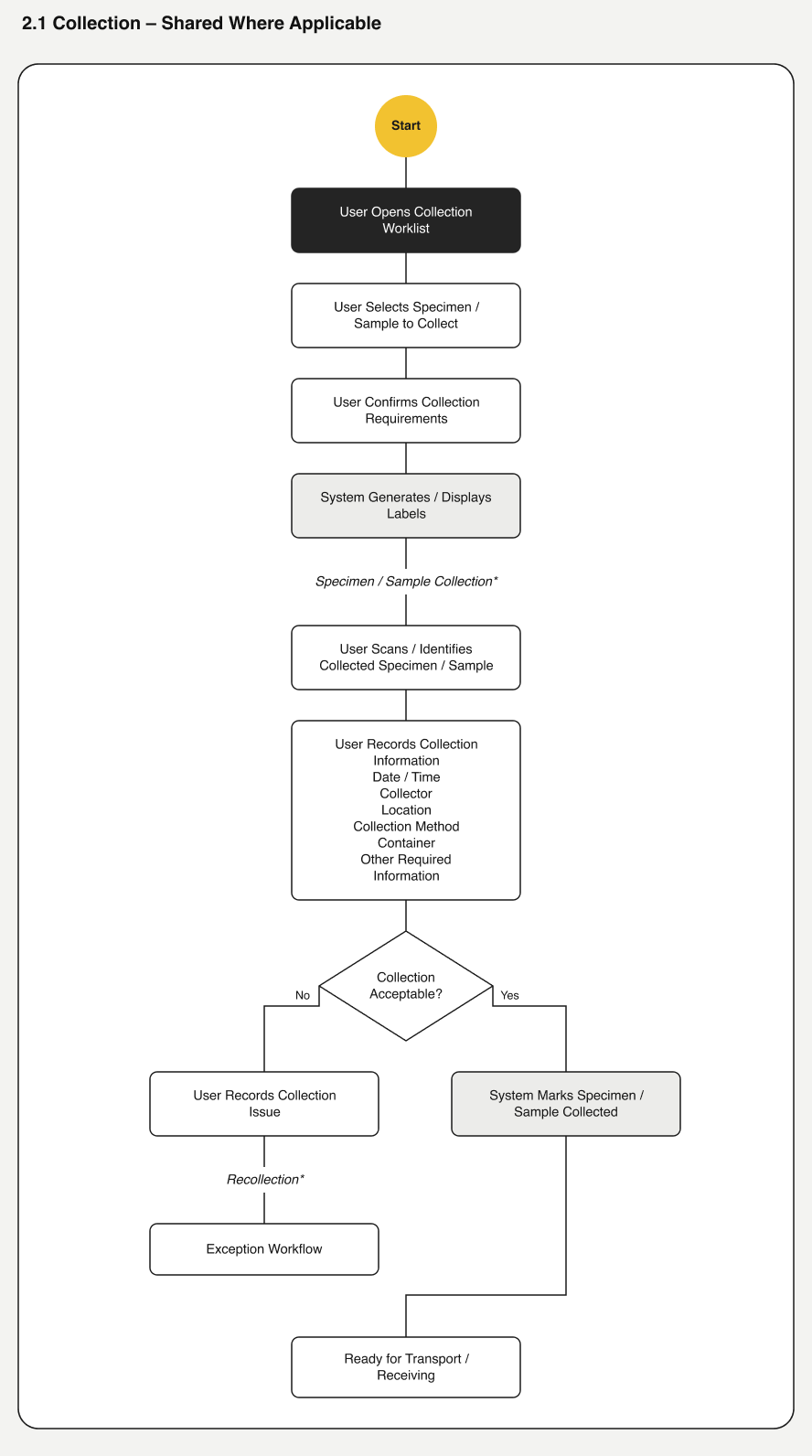

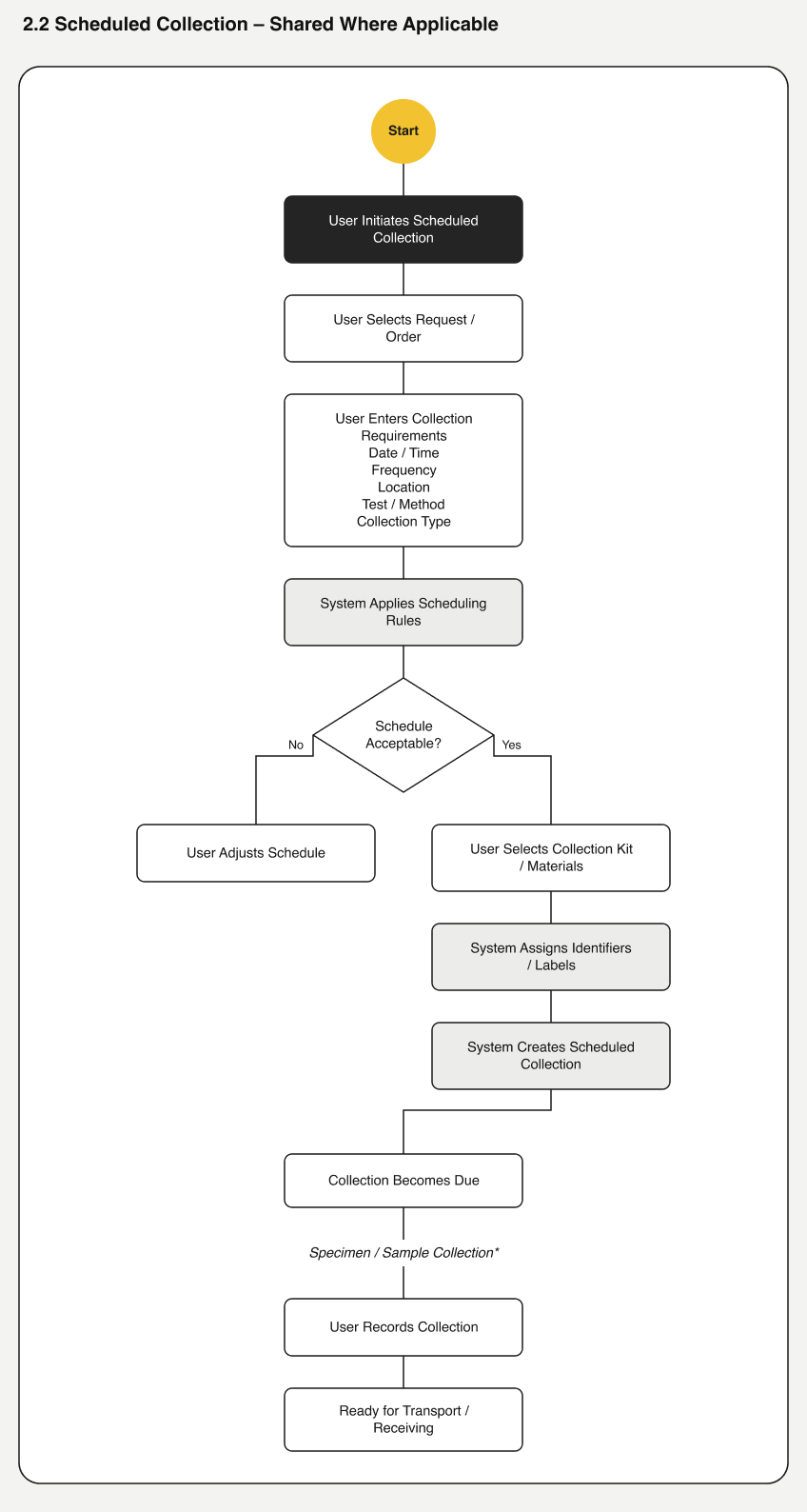

Collection

Tissue or cells collected during a clinical procedure

Patient-centric blood, urine, swab, or fluid collection

Clinical or research sample; assay-dependent

Field, production, facility, or laboratory sampling

Transport

Specimens, blocks, or slides between locations

Specimen transport to laboratory or reference lab

Controlled transport for samples or extracts

Shipment, preservation, chain of custody, conditions

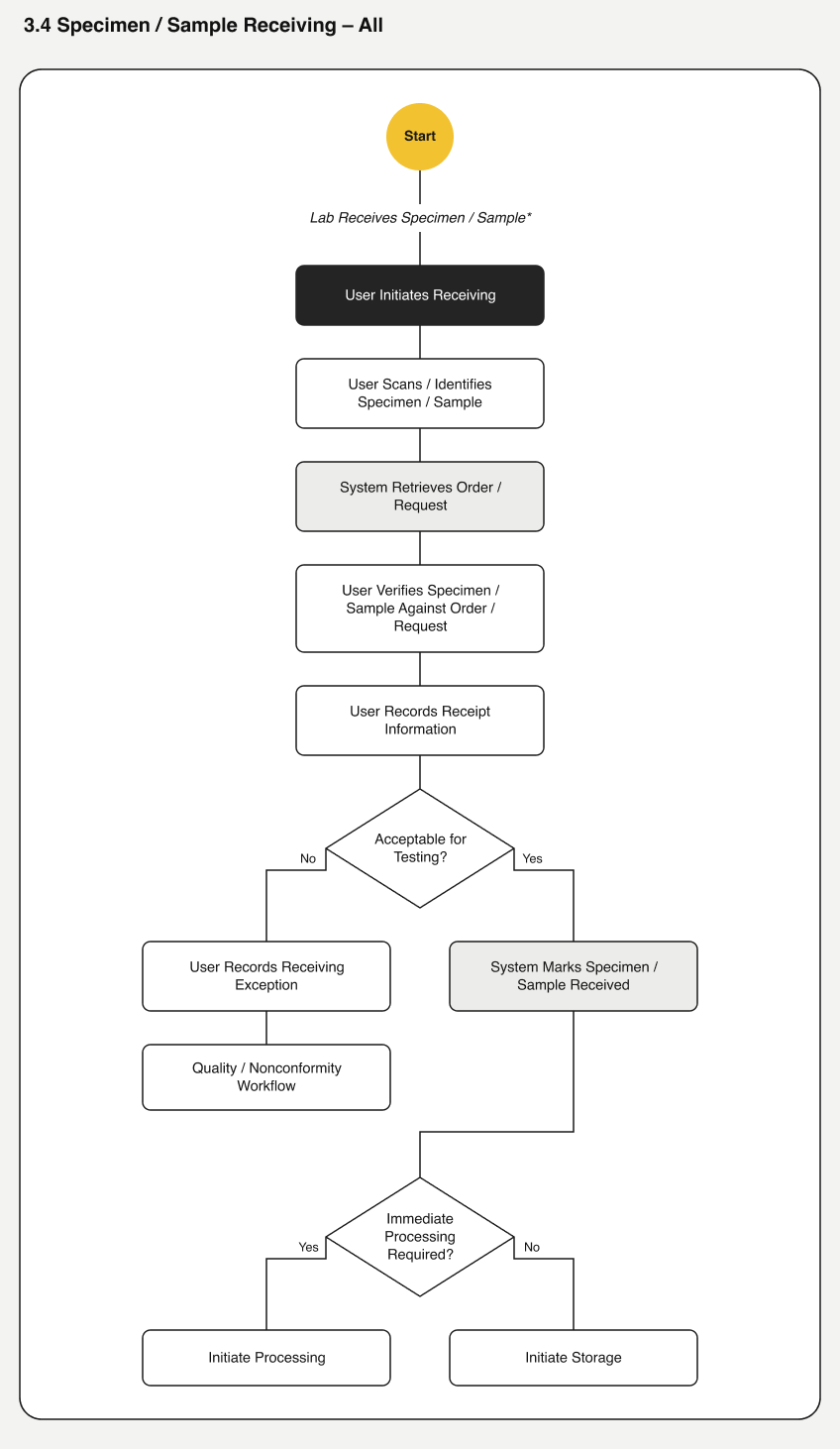

Receiving

Accession to patient and case

Match specimen to patient and order

Associate sample with request and assay

Associate sample with customer, project, or study

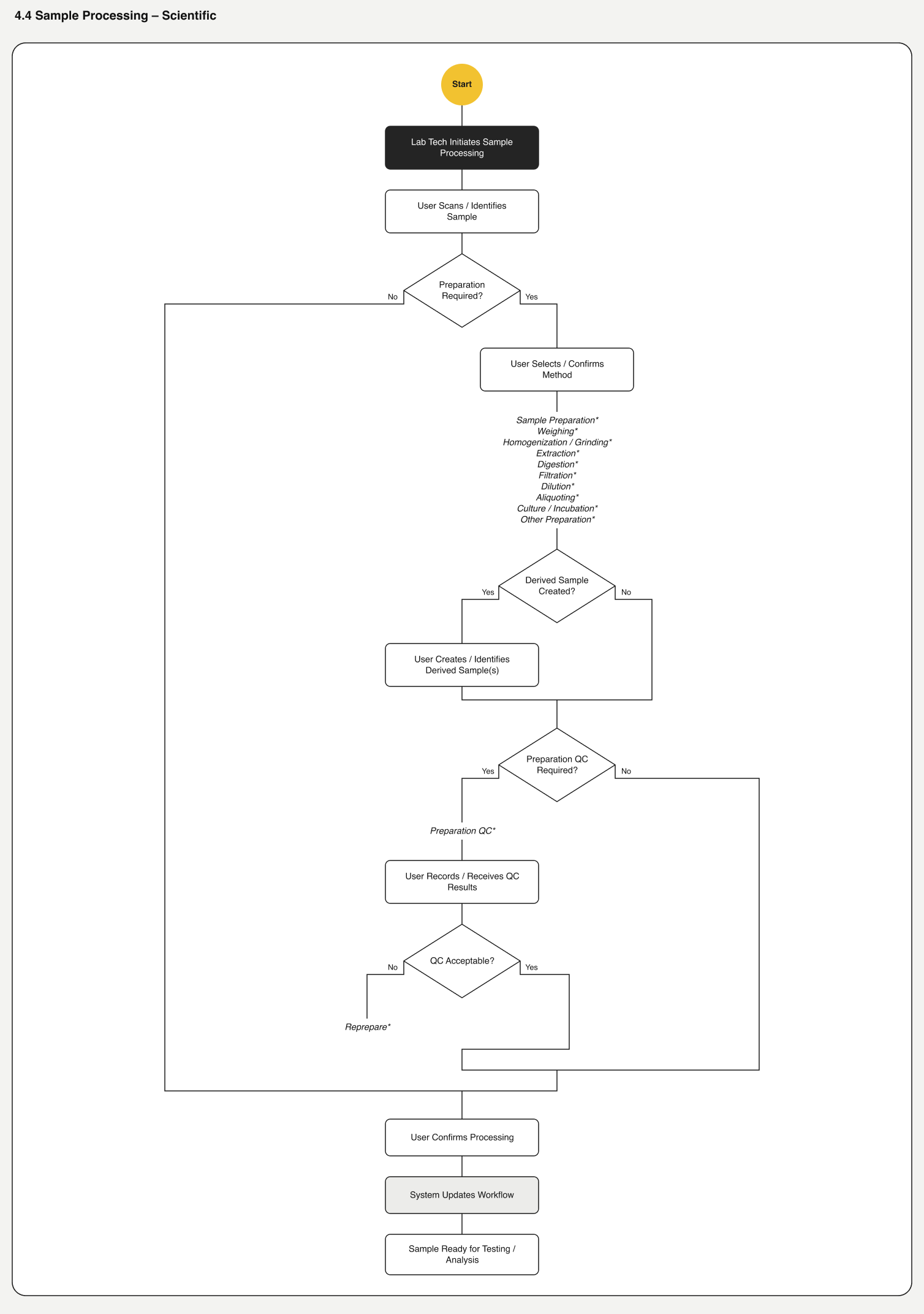

Preparation

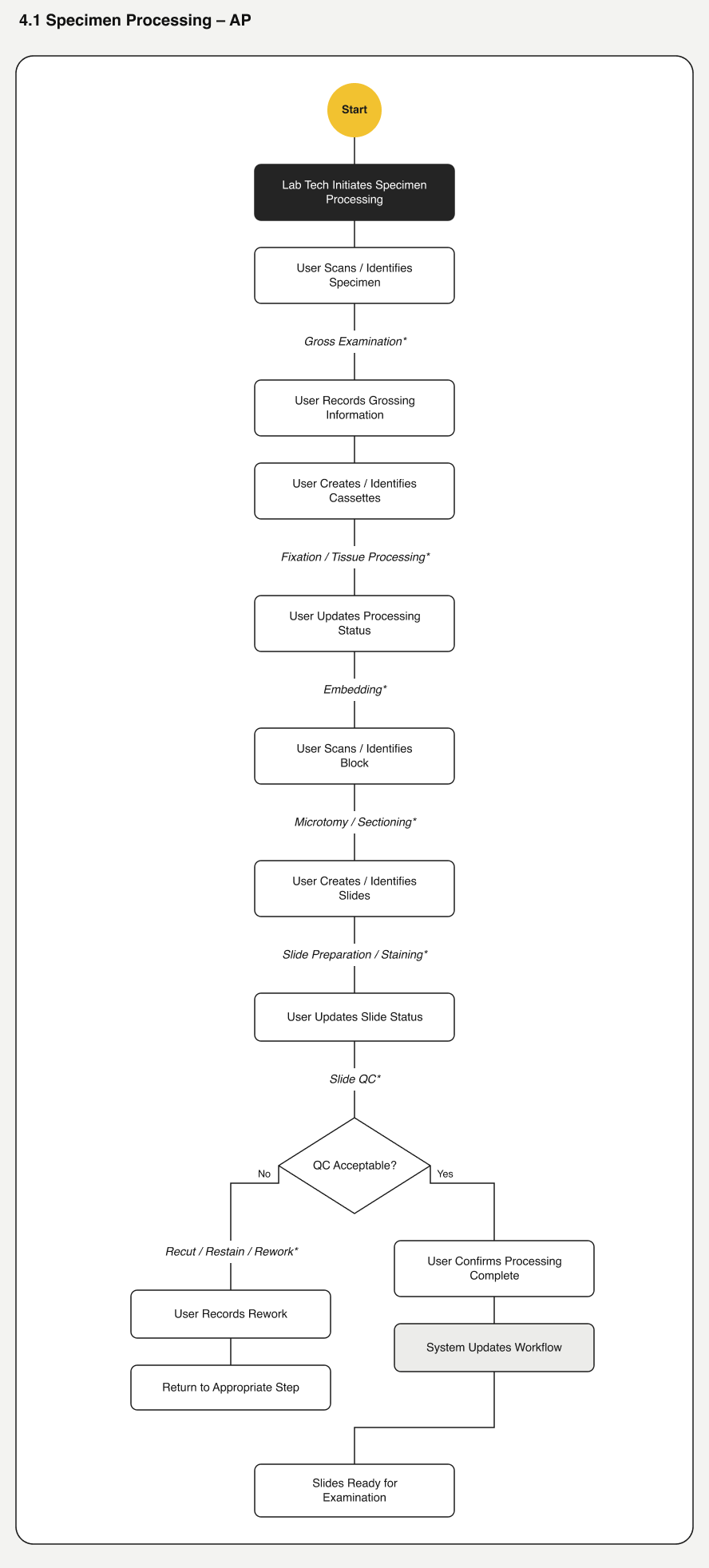

Grossing→fixation→embedding→sectioning

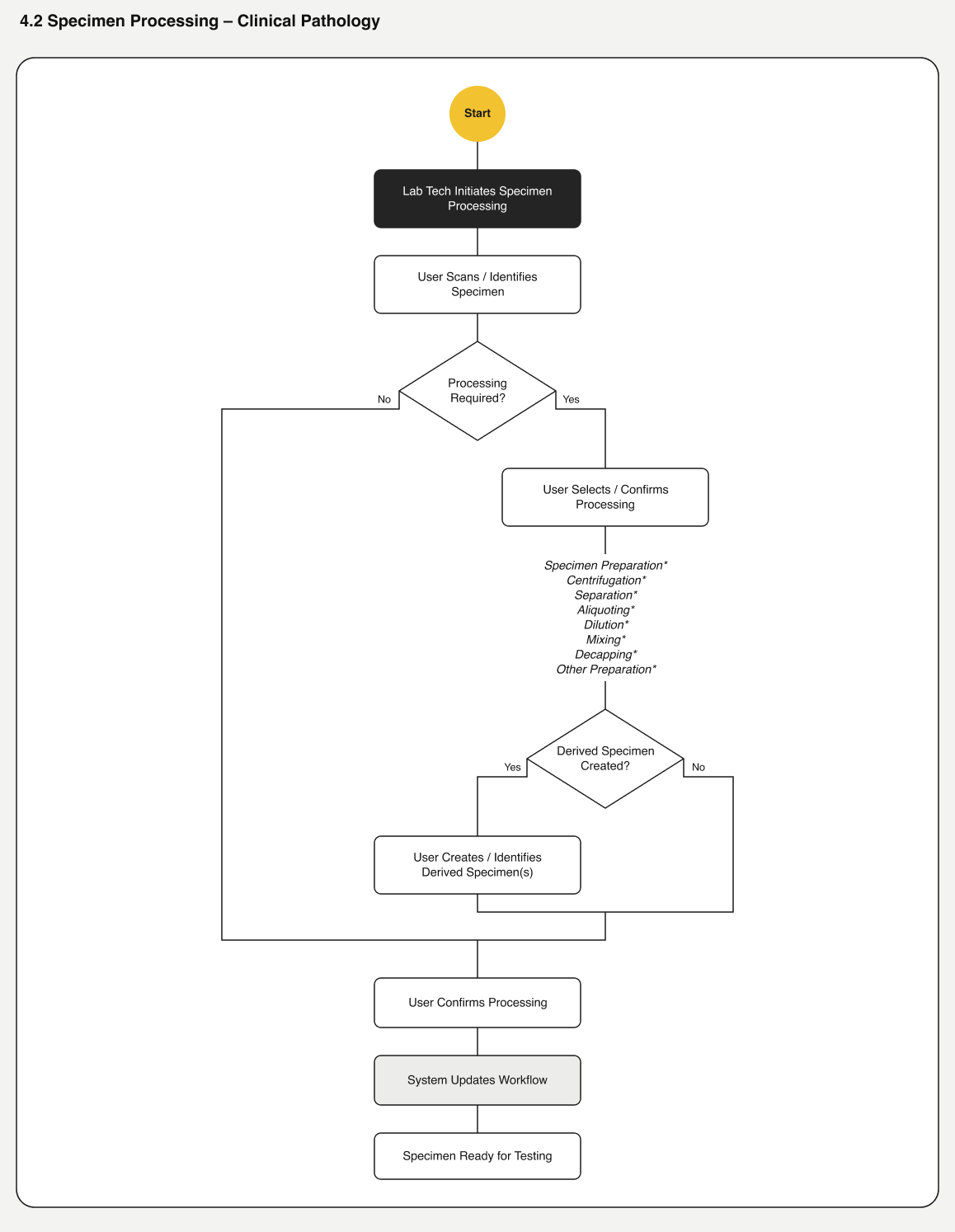

Centrifuge→separate→aliquot→dilute

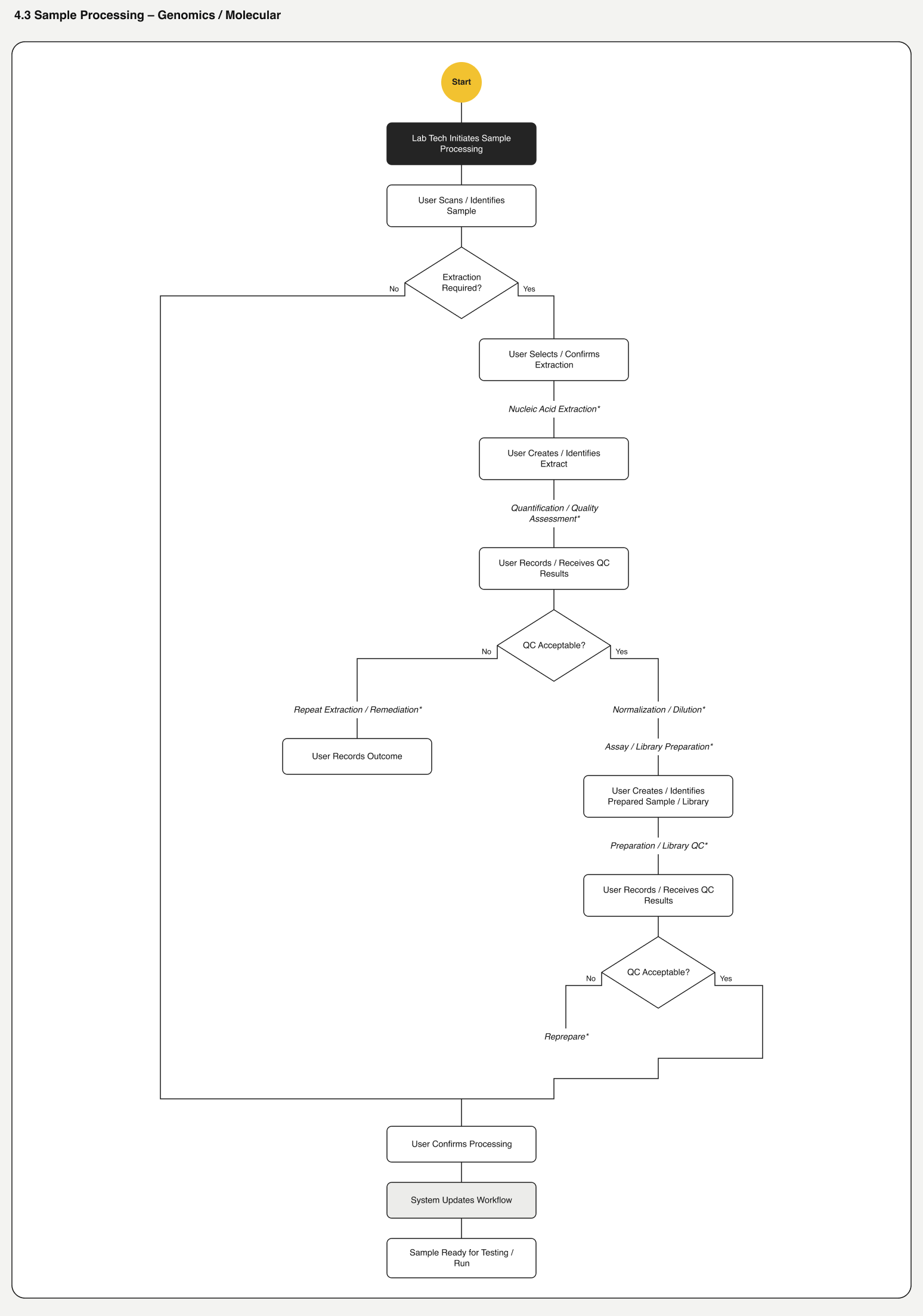

Extraction→QC→normalization→library preparation

Weigh→homogenize→extract→digest

Derived material

Specimen→cassette→block→slide

Specimen or aliquot / derivative

Sample→extract→library→pool

Aliquot, extract, digest, culture, or preparation

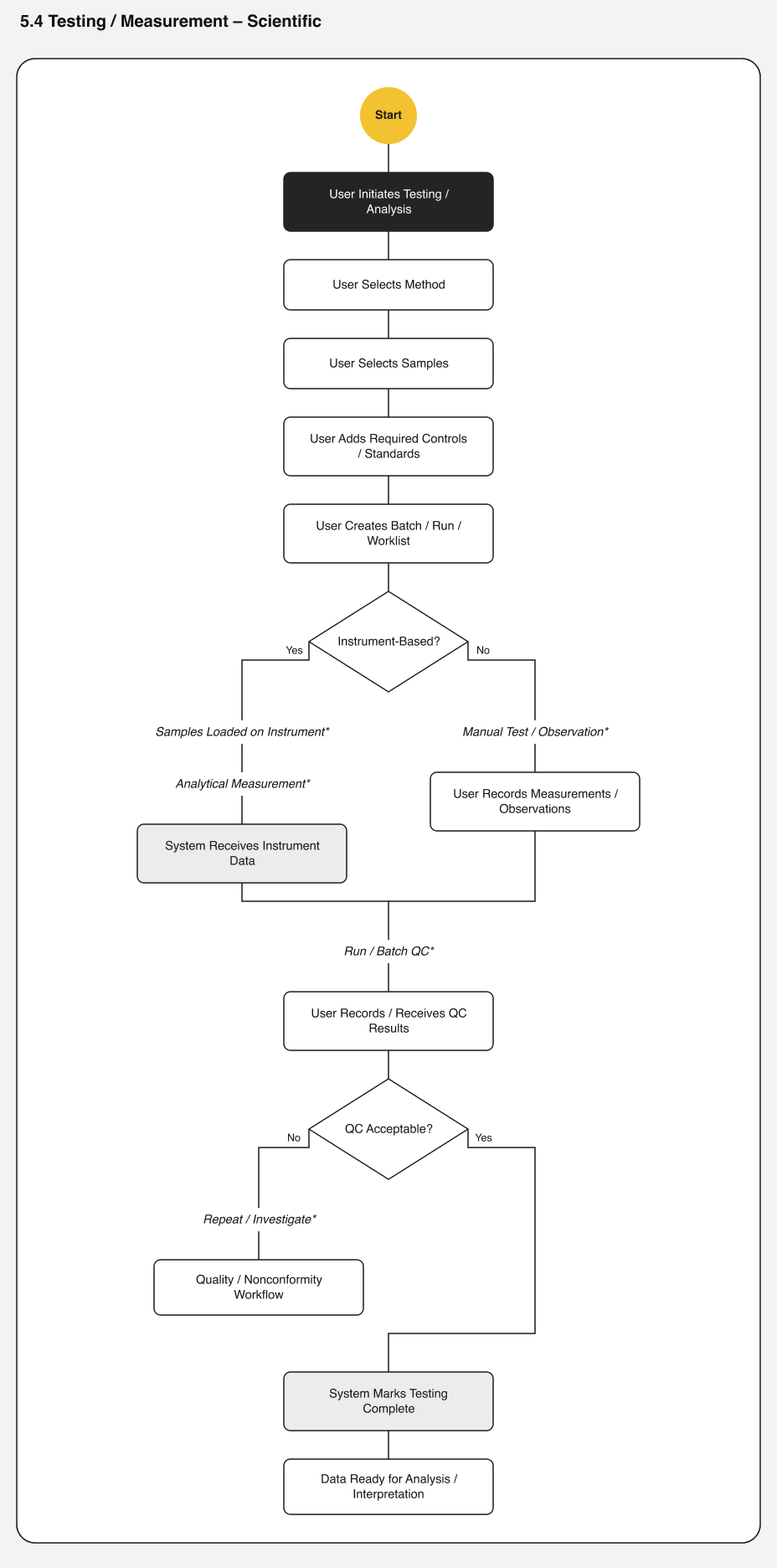

Testing

Microscopy and ancillary stains / IHC / ISH

Automated analyzer or manual testing

PCR, molecular assays, sequencing

Instrumental or manual analytical method

Work grouping

Case, processor, or stain run

Test, analyzer rack, or batch

Plate, assay, pool, or sequencing run

Method, batch, run, or worklist

Raw output

Morphology, image, or observation

Instrument measurement or manual result

Signals, reads, sequence or run data

Measurements, observations, analytical data

Quality control

Tissue, section, and stain quality

Controls, calibration, analyzer and test QC

Extraction, library, assay, run, and data QC

Controls, blanks, standards, system suitability

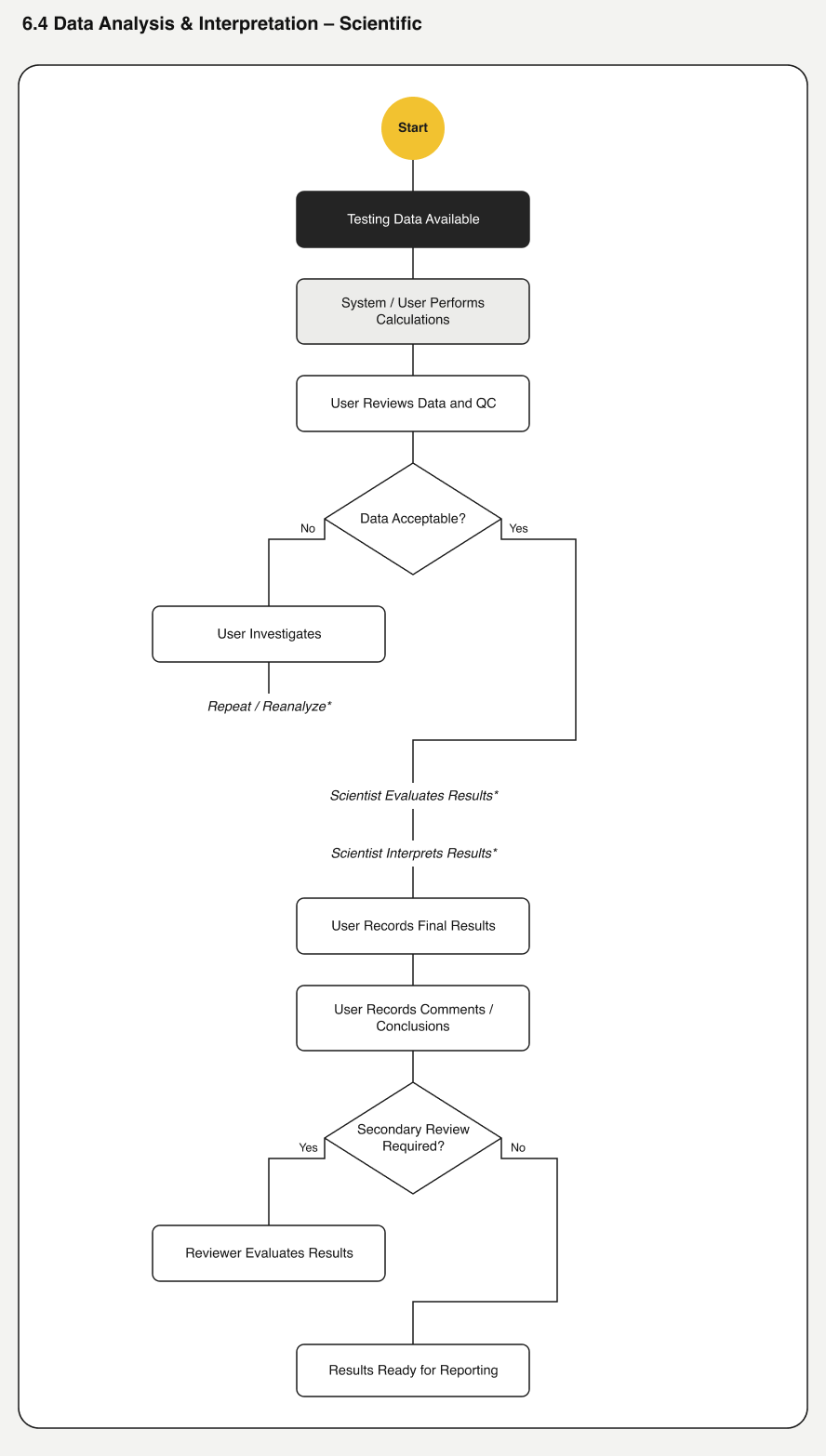

Analysis

Morphologic assessment and correlation

Calculations, ranges, flags, and rules

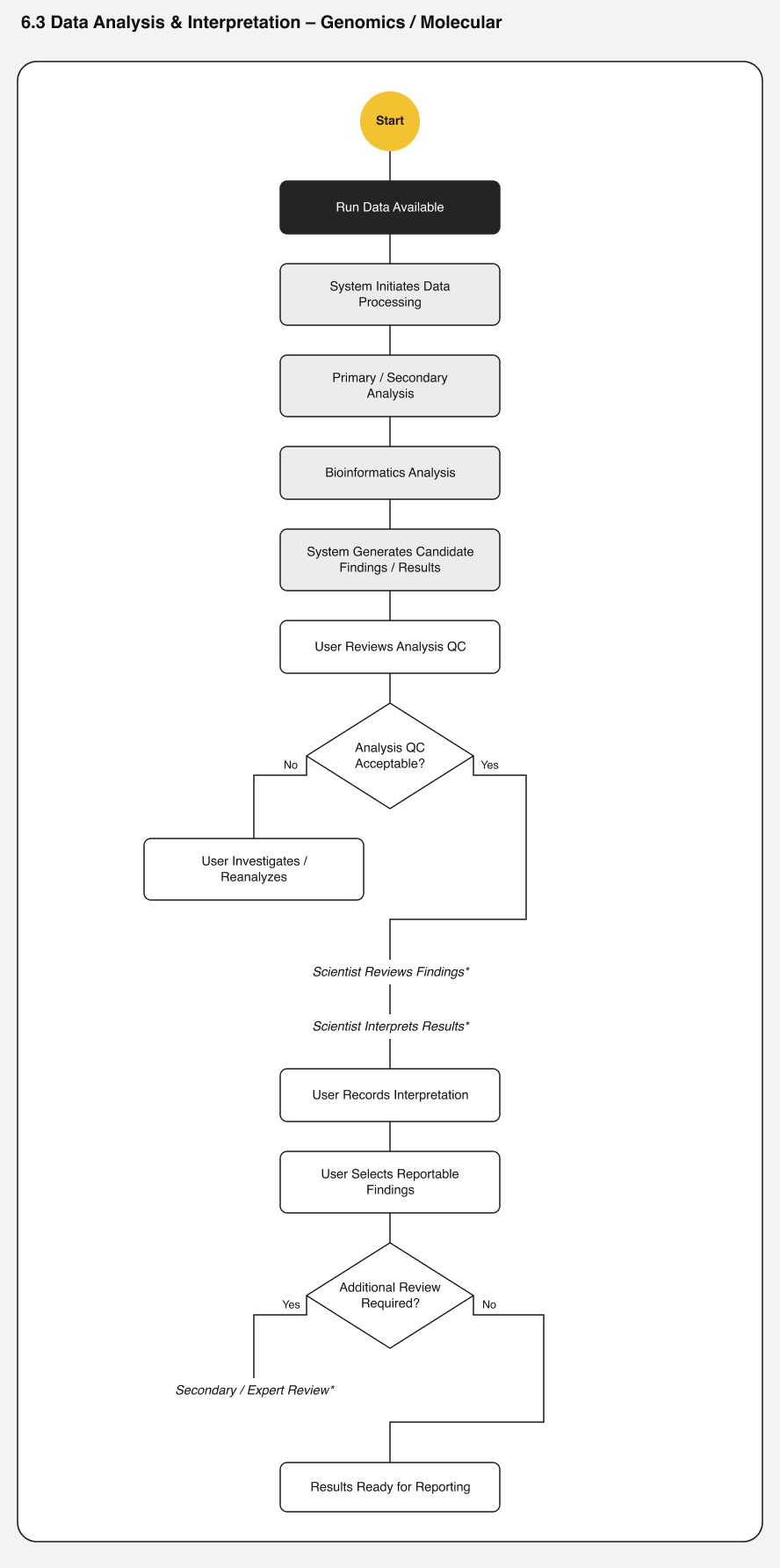

Bioinformatics and computational analysis

Quantitation, calculations, statistics

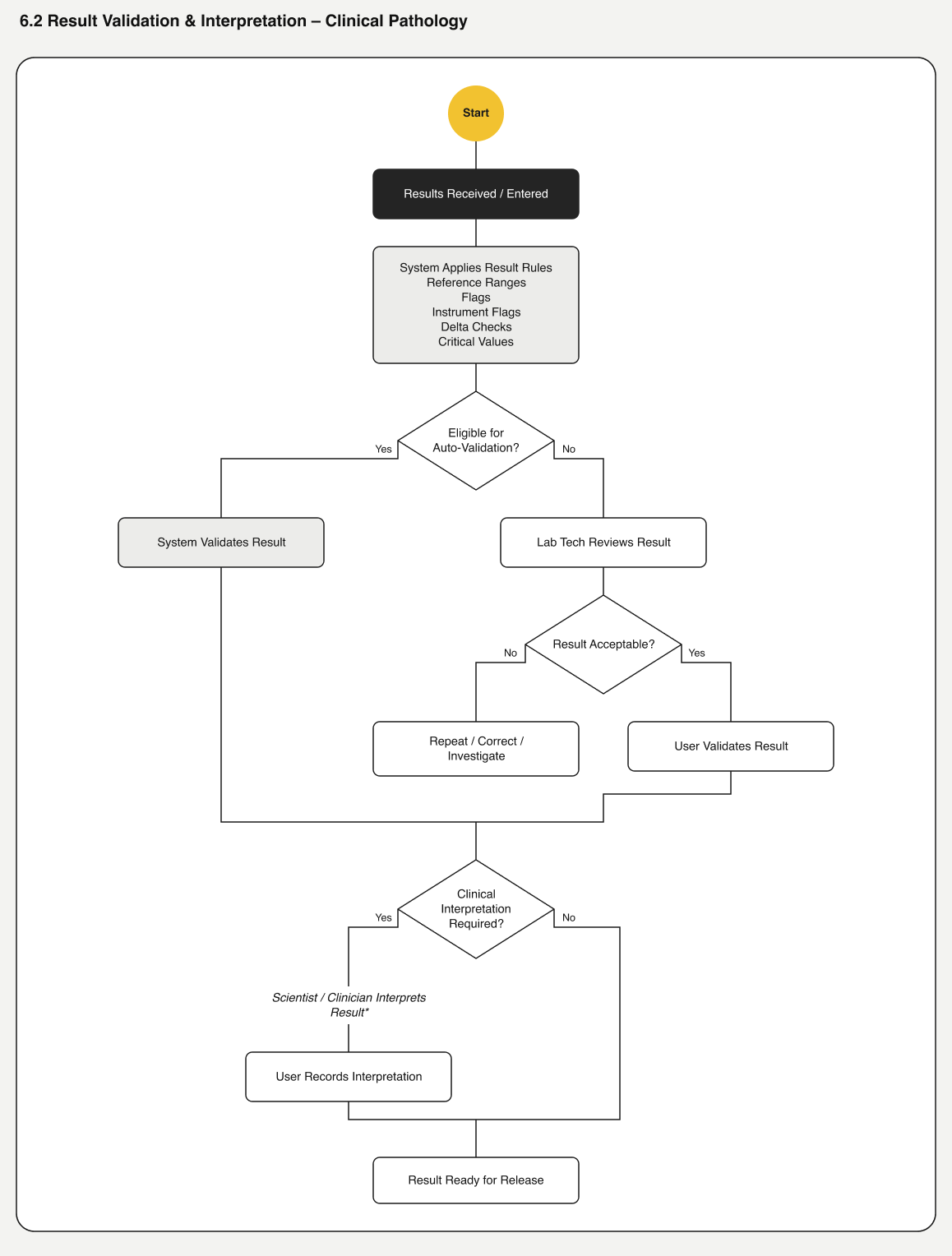

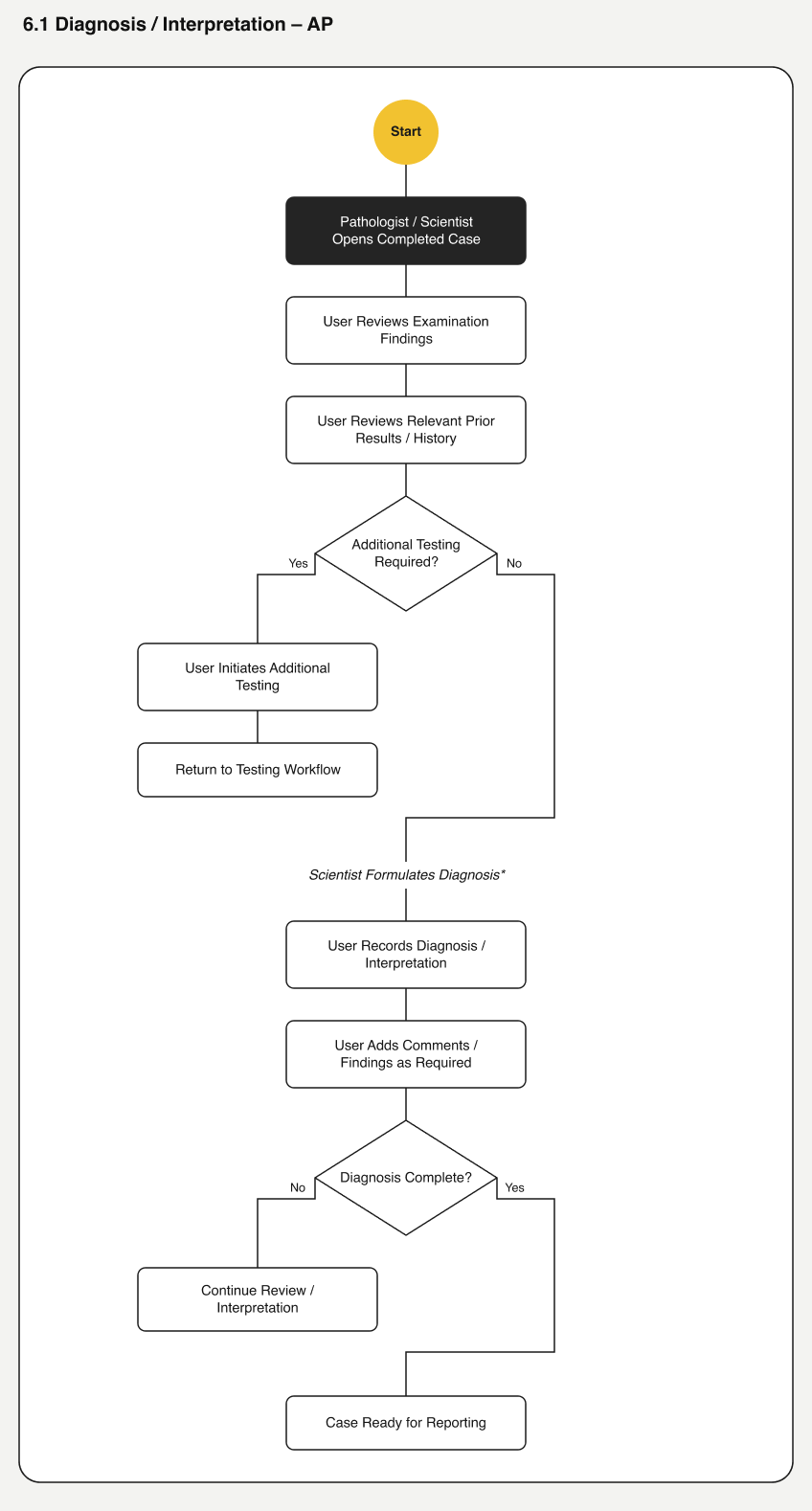

Interpretation

Pathologist diagnosis is central

Technical validation; clinical interpretation as needed

Scientific interpretation of molecular findings

Scientific or technical review

Result

Diagnosis or findings

Patient test result

Molecular or genomic finding and interpretation

Analytical result, determination, or conclusion

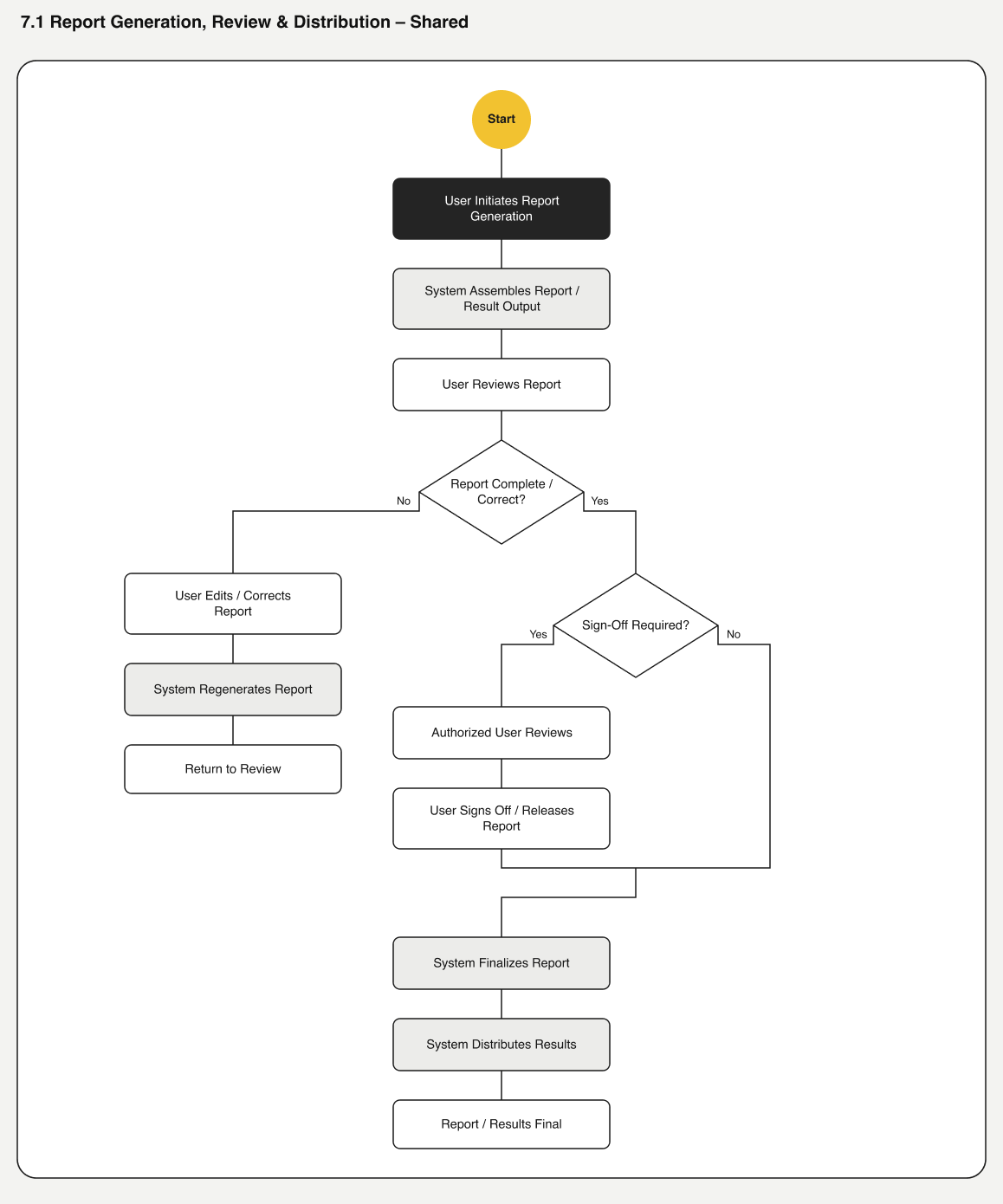

Reporting

Diagnostic report; narrative and structured

Structured results to downstream clinical systems

Structured findings and interpretive report / data

COA, analytical report, dataset, or regulatory output

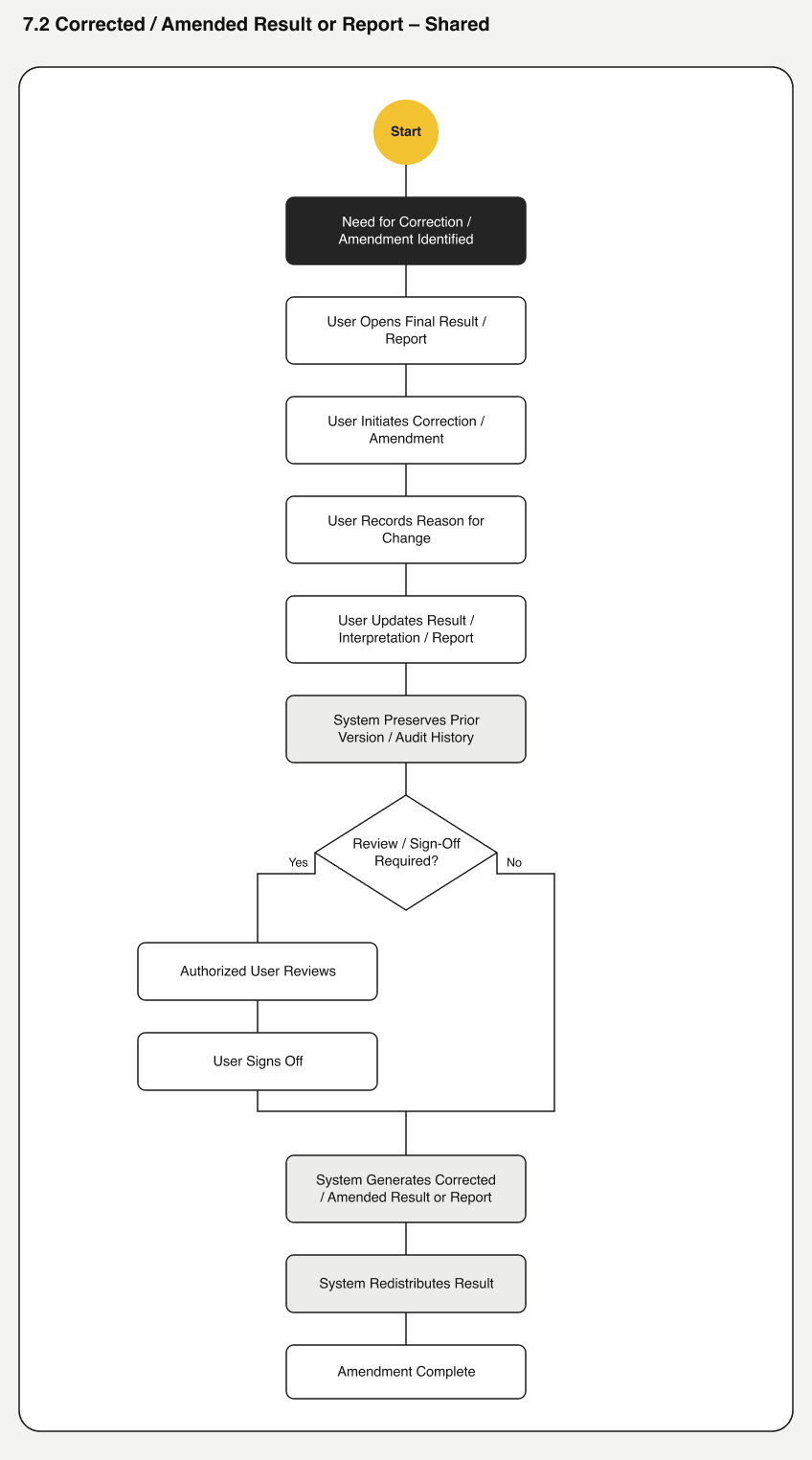

Corrections

Addendum or amended report

Corrected result

Amended report or reinterpretation

Revised result or report

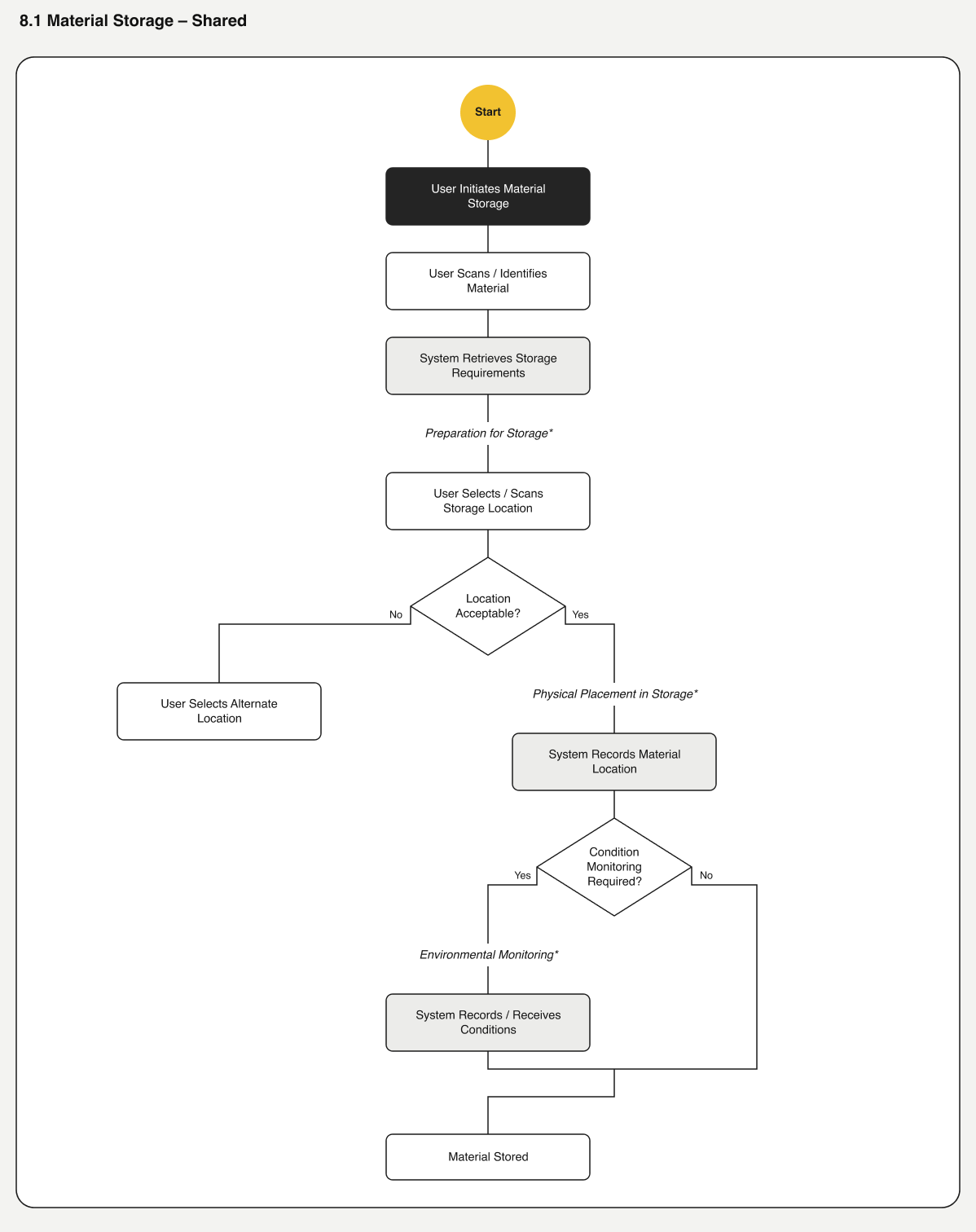

Storage

Tissue, blocks, and slides

Specimens and aliquots

Samples, extracts, libraries, and data

Samples, preparations, materials, and data

Retrieval / Reuse

Review, recut, additional stains or tests

Add-on or repeat testing

Retest, rerun, or reanalysis

Retest, investigation, additional analysis

Disposal

Retention-based tissue or material disposal

Specimen and biohazard disposal

Requirement-based sample disposal

Material-specific and regulatory disposal

Traceability

Patient→case→specimen→cassette→block→slide

Patient→order→specimen→test→result

Sample→derivatives→run→data→finding

Material→preparation→method / run→result

Application-flow translation

The model became 29 application flows across nine stages of work.

Shared stages used a common flow, while variants captured meaningful differences among healthcare, genomics, and scientific work.

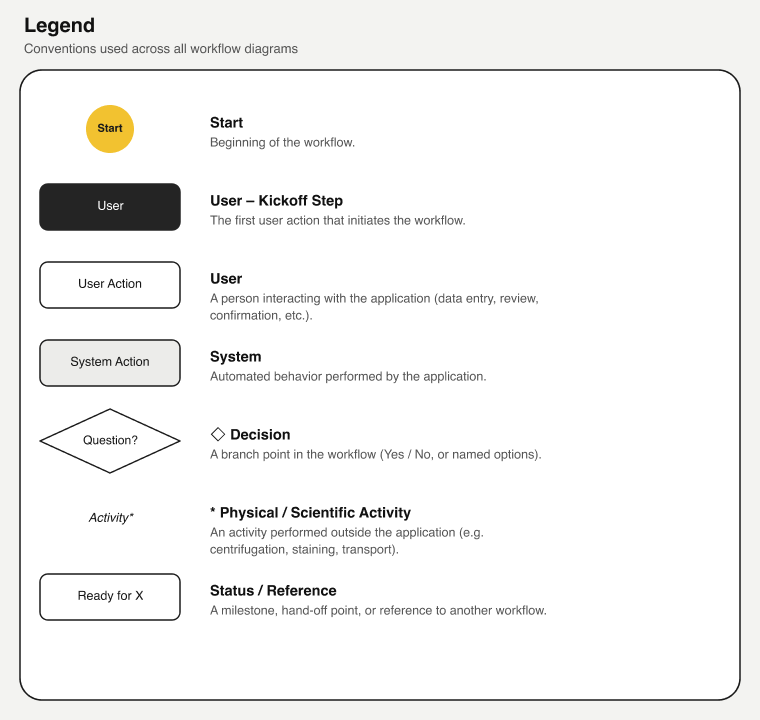

Legend

Conventions used across the workflow diagrams: user actions, system actions, decisions, physical/scientific activities, and status handoffs.

1. Order Entry

Order Entry · Healthcare
Request / Work Submission · Scientific

2. Collection

Collection · Shared Where Applicable
Scheduled Collection · Shared Where Applicable

Transport out flow, shared across domains

3. Transport & Receiving

Transport Out · Shared
Transport In / Shipment Receipt · Shared
External Result / Report Receipt · Shared
Specimen / Sample Receiving · All

Specimen processing flow, Anatomic Pathology

4. Specimen / Sample Processing

Specimen Processing · Anatomic Pathology
Specimen Processing · Clinical Pathology
Sample Processing · Genomics / Molecular
Sample Processing · Scientific

Examination/testing flow, Anatomic Pathology

5. Examination / Testing

Examination / Testing · Anatomic Pathology
Testing · Clinical Pathology
Testing · Genomics / Molecular
Testing / Measurement · Scientific

Diagnosis/interpretation flow, Anatomic Pathology

6. Diagnosis / Interpretation & Data Analysis

Diagnosis / Interpretation · Anatomic Pathology
Result Validation & Interpretation · Clinical Pathology
Data Analysis & Interpretation · Genomics / Molecular
Data Analysis & Interpretation · Scientific

Report generation, review, and distribution flow, shared across domains

7. Reporting

Report Generation, Review & Distribution · Shared
Corrected / Amended Result or Report · Shared

Material storage flow, shared across domains

8. Storage & Disposal

Material Storage · Shared
Material Retrieval / Movement · Shared
Material Disposal · Shared

Quality control/nonconformity flow, shared across domains

9. Quality & Exceptions

Quality Control / Nonconformity · Shared

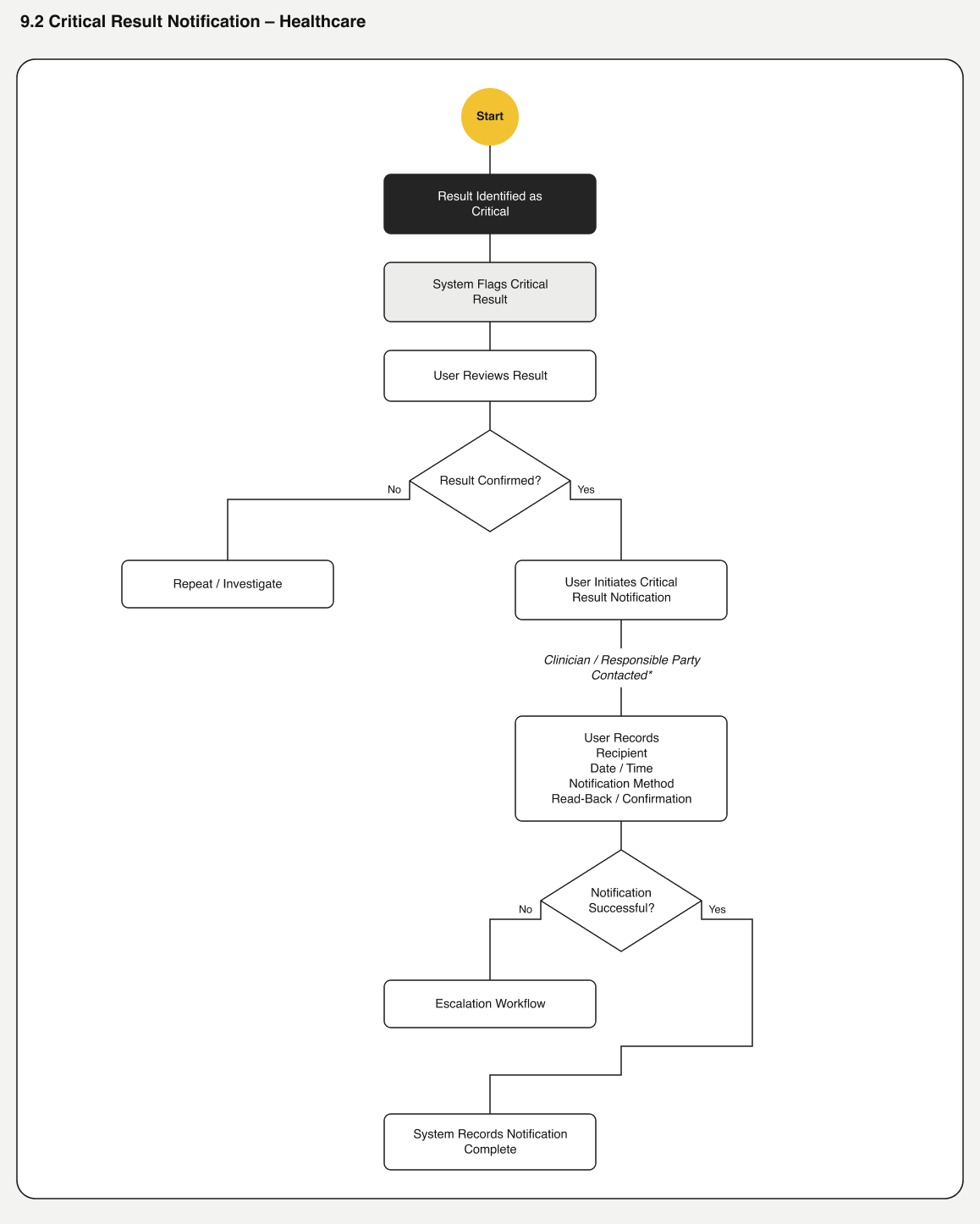

Critical Result Notification · Healthcare
Reflex Testing · Healthcare / Genomics
Additional / Add-On Testing · Shared Where Applicable

Support

The final lens separated platform capabilities from any single role, object, or workflow.

Identity & access

Users, roles, permissions, and authorization.

Configuration

Terminology, workflows, rules, and application behavior.

Integration

Instruments, external systems, applications, and services.

Security

Protection of laboratory and sensitive data.

Quality & compliance

Auditability, quality processes, and regulatory requirements.

System administration

Application maintenance and management.

05 · Outcome

The research gave product teams evidence for deciding where the experience should converge, and where it must branch.

Key discovery

Team members had deep expertise in their own disciplines but limited visibility into how other disciplines worked. As CLS expanded from scientific into healthcare, capabilities such as permissions, configuration, and integrations that had been assumed to be discipline-specific exposed gaps that caused rework.

CLS already had a Microbiology workflow built for scientific labs, and the plan was to reuse it for healthcare. Healthcare stakeholders opposed it, and the first Microbiology designs created conflict because neither group understood the other's requirements. When I took over Microbiology, I went back and finished the shared workflows first so the framework could be applied to it. Without that foundation, those decisions had been adding time to the design schedule. With the shared workflows in place, Microbiology moved forward.

DeliveryThe four-lens framework and 29 application flows were delivered to product and engineering as a discipline-by-discipline starting point for translating the research into CLS interface behavior.

StatusThe framework was used for Clinical Microbiology and Clinical Pathology. At the time, we had not tested broader adoption because no other domain had required it.

ReuseThe framework remained accessible and was structured to extend to additional domains without being rebuilt.

06 · Conclusion

Shared versus specific was decided flow by flow, sometimes step by step.

Testing and interpretation diverge sharply because that is where domain expertise lives. Collection, reporting, and storage converge because the underlying operations (receive it, document it, release it, keep it) do not depend on what "it" is.

The deliverable was not a screen or prototype. It was a way of thinking that made subsequent screen decisions faster and more defensible.

Next case studyGlobal Compliance & Accessibility Framework →
